The NXP 74LVC109D,118 is a high-performance, dual JK flip-flop integrated circuit that features positive-edge-triggered inputs and is designed to operate from a 1.65 V to 5.5 V power supply, making it suitable for interfacing with both 3.3 V and 5 V systems. This versatility ensures compatibility with a wide range of digital applications, from microcontrollers to signal processing and beyond.

Key Features:

• Logic Type: JK Flip-Flop
• Output Type: Differential
• Trigger Type: Positive Edge
• Supply Voltage Range: 1.65 V to 5.5 V
• Operating Temperature Range: -40°C to +125°C

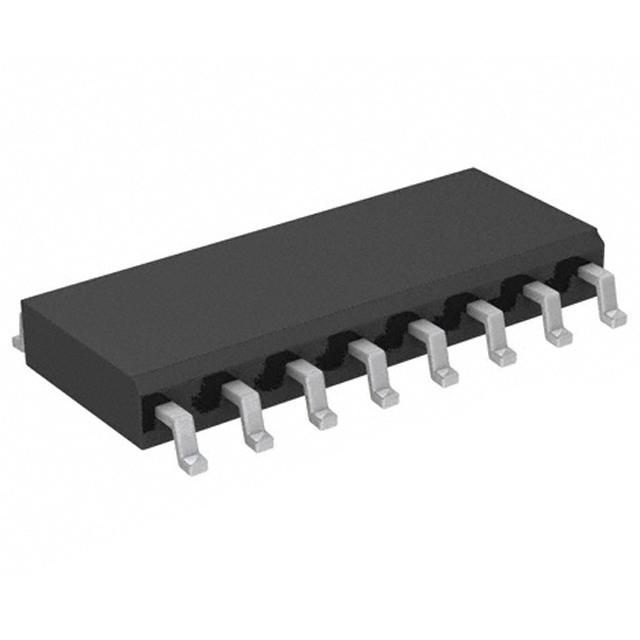

• Package / Case: SOIC-16
• Logic Family: LVC
• Propagation Delay Time: 3.7 ns at 3.3 V, 2.9 ns at 5 V

The 74LVC109D,118 is characterized by its high-speed operation, which is maintained over the entire voltage range. The low on-state resistance of this device allows for high-speed switching, which is essential for modern high-speed data processing and communication systems.

Additionally, the device is fabricated using an advanced silicon-gate CMOS technology, which provides the advantage of high noise immunity and low static power consumption. The power-down protection feature ensures that the device's inputs can be safely applied before the power supply is established, thus protecting the IC during installation or power fluctuations.

With its balanced propagation delays and output transition times, the 74LVC109D,118 is optimized for synchronous signal processing, which is critical for maintaining data integrity in digital circuits. The multiple package options, including the space-saving SOIC-16, provide flexibility for PCB design and are beneficial for compact electronic assemblies.

Overall, the NXP 74LVC109D,118 is an ideal choice for designers looking for a reliable and efficient solution to implement flip-flop logic in their digital systems. Its robust feature set ensures it can meet the demands of a variety of applications that require precise edge-triggered data storage and manipulation.
