Overview of NXP 74LVC161PW-T

The NXP 74LVC161PW-T is a high-performance, low-voltage 4-bit binary counter integrated circuit from NXP Semiconductors' 74LVC family. This precision device is designed to operate in a wide range of applications where counting functionality is required, such as in industrial automation, consumer electronics, and embedded systems. With its advanced silicon technology, the 74LVC161PW-T offers both robustness and versatility, making it an ideal choice for designers looking to implement reliable counting solutions in their projects.

Key Features

• Logic Family: The device belongs to the LVC family, which stands for Low-Voltage CMOS. This ensures that the counter operates at a low power supply while still delivering high-speed performance.
• Supply Voltage Range: It operates over a wide range of supply voltages from 2.0V to 3.6V, which is compatible with most low-voltage logic levels and systems.
• Counting Capability: As a 4-bit binary counter, it can count from 0 to 15, which makes it suitable for a variety of counting applications.

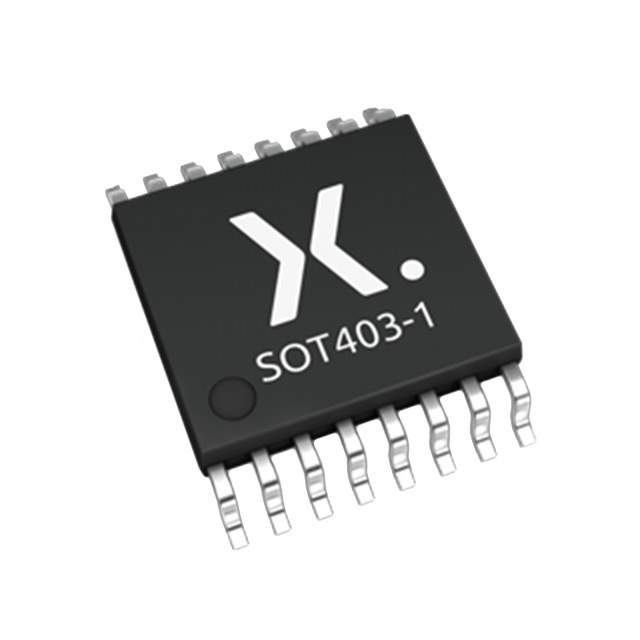

• Package: The 74LVC161PW-T is housed in a TSSOP-16 (thin shrink small outline package) which is ideal for space-constrained applications.
• High-Speed Performance: It boasts a high clock input frequency, ensuring swift counting operations suitable for high-speed systems.

Functional Description

The NXP 74LVC161PW-T features synchronous reset and count enable pins, allowing precise control over the counting operations. It includes a synchronous reset function that resets the counter to zero when applied, regardless of the state of the clock input. The count enable input allows the counter to increment when active, providing designers with the flexibility to control the counting sequence as required by their application.

Applications

With its robust design and flexible operating characteristics, the 74LVC161PW-T is well-suited for a wide range of applications. These include:

• Timers and event counters in industrial control systems
• Frequency dividers in communication equipment
• Counter operations in consumer electronics such as digital watches and cameras
• General-purpose counting in embedded systems

Overall, the NXP 74LVC161PW-T is a reliable and efficient solution for designers seeking a high-performance counter IC that combines low-power consumption with high-speed operation.
