Overview of NXP 74LVC1G157GV/S500125

The NXP 74LVC1G157GV/S500125 is a high-performance, single 2-input multiplexer that offers a compact and efficient solution for various digital switching applications. This advanced semiconductor device is part of NXP's 74LVC family, known for its low-voltage CMOS technology, which ensures low power consumption while maintaining high-speed operation.

Key Features

• Low Voltage Operation: The device operates at a supply voltage range of 1.65V to 5.5V, making it suitable for battery-powered and low-power applications.
• High-Speed Performance: With its ability to switch at high speeds, the 74LVC1G157GV/S500125 is ideal for high-frequency signal processing.
• 5V Tolerant Inputs: The inputs can tolerate a 5V signal level even when the device is powered by a lower voltage, providing design flexibility and compatibility with mixed-voltage systems.
• Low Power Dissipation: It features a very low quiescent power dissipation, which is crucial for power-sensitive designs.
• ESD Protection: The device includes input and output protection against electrostatic discharge, ensuring reliability and longevity in harsh environments.

Applications

The 74LVC1G157GV/S500125 is versatile and can be used in a wide array of applications, including:

• Digital signal routing and switching
• Data multiplexing
• Function generation
• Signal gating
• Communication systems
• Portable and battery-powered devices

Package and Quality

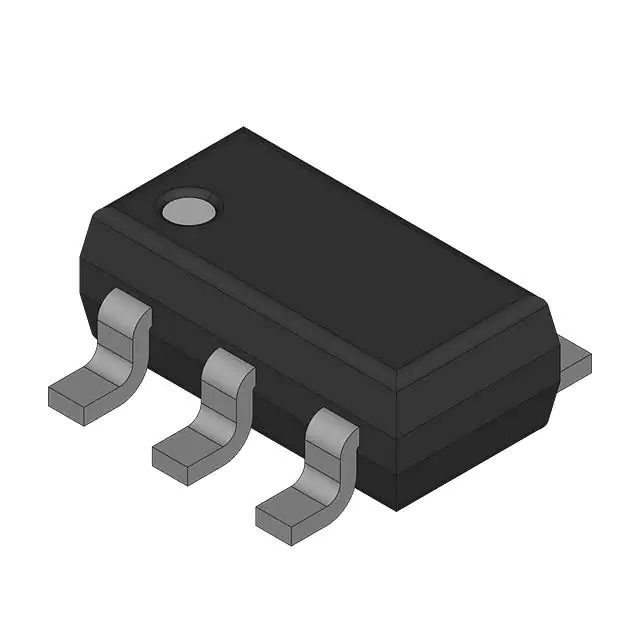

The product comes in a small outline package (SOT753), which is also known as a SC-74A or SOT23-5. This package is ideal for space-constrained applications due to its small footprint. NXP's commitment to quality ensures that the 74LVC1G157GV/S500125 meets strict industry standards for performance and reliability.

Conclusion

With its combination of low power consumption, high-speed operation, and robust protection features, the NXP 74LVC1G157GV/S500125 is an excellent choice for designers looking to implement an efficient and reliable multiplexing solution in their digital systems. Its compact form factor and flexible voltage compatibility further enhance its suitability for a wide range of applications in the modern electronics landscape.
