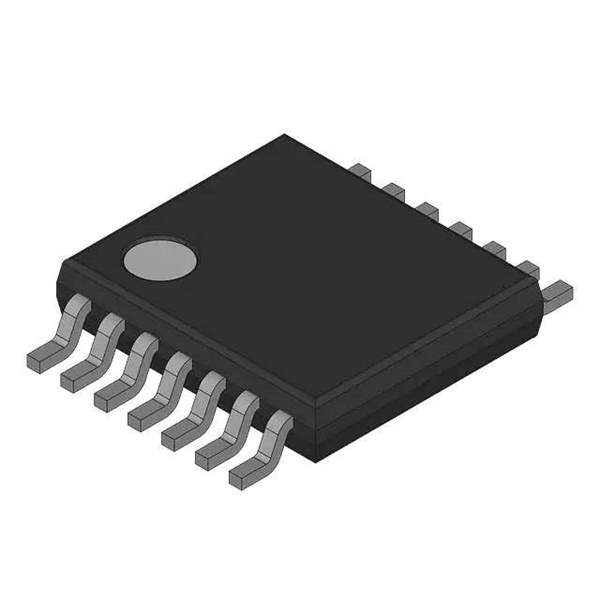

Product Overview: 74LVC32APW/DG118 by NXP Semiconductors

The 74LVC32APW/DG118 is a high-performance, low-voltage CMOS device manufactured by NXP Semiconductors. This product is part of NXP's LVC family, which is renowned for its low-voltage operation and high-speed interface technology. The 74LVC32APW/DG118 is particularly designed for use in 3.3V systems, where power efficiency and speed are critical factors.

Featuring a quad 2-input OR gate, this integrated circuit ensures reliable logic operations. Each gate performs the logical inclusive OR function, making the device a fundamental component for a wide range of digital applications. The OR gates are designed to operate from a 1.2V to 3.6V V_CC operating voltage range, which allows for the use of this device in mixed-voltage systems and provides interface compatibility with lower voltage processors and controllers.

One of the key attributes of the 74LVC32APW/DG118 is its 5V tolerant inputs, which allow for interfacing with 5V logic levels without the risk of damage. This feature is particularly beneficial in transitional systems where legacy logic levels are still in operation, ensuring a smooth integration with newer, low-voltage components.

The device is housed in a TSSOP-14 (Thin Shrink Small Outline Package) with a body width of 4.4mm. This compact form factor makes it suitable for space-constrained applications, while still providing the robustness and reliability expected from NXP products. The package is also designed for optimal thermal dissipation, ensuring stable operation under varying environmental conditions.

With its high-speed performance, the 74LVC32APW/DG118 boasts a propagation delay of only 3.7ns at a 3.3V supply, and a 5V tolerant I/O capability, which is essential for interfacing with both 3.3V and 5V systems. This makes it an ideal choice for high-speed logic operations in telecommunications, computing, and consumer electronics where both speed and power efficiency are paramount.

Overall, the 74LVC32APW/DG118 from NXP Semiconductors offers a blend of high-speed operation, low-voltage compatibility, and 5V tolerant inputs, making it a versatile and reliable choice for designers seeking to optimize their digital systems.
