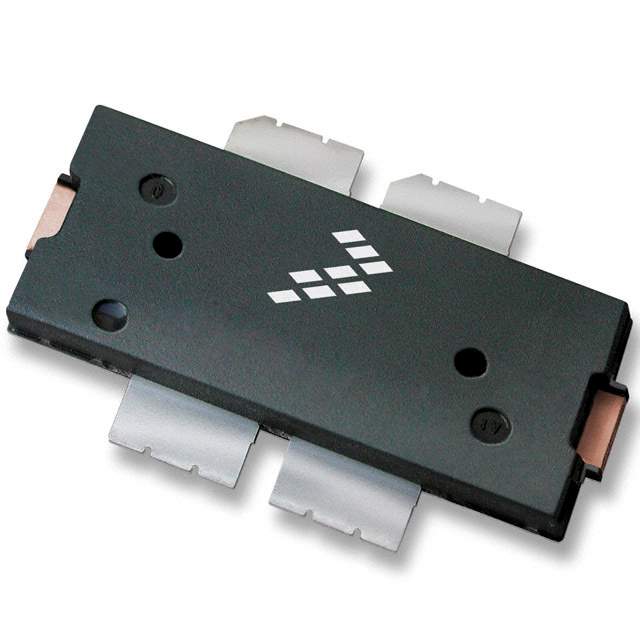

The AFT09MP055NR1 is a state-of-the-art RF power transistor designed by NXP Semiconductors, a leading name in the electronics industry. This high-performance product is tailored for mobile two-way radio applications, offering exceptional efficiency and reliability in a compact package.

Key Features

• Frequency Range: The AFT09MP055NR1 operates effectively in the 136-941 MHz range, making it versatile for various communication applications.
• Output Power: It boasts an impressive output power of 55 Watts, ensuring clear and strong signal transmission for critical communication needs.
• High Gain: With a power gain of 18.7 dB, this transistor amplifies RF signals efficiently, maintaining signal integrity even in challenging environments.
• High Efficiency: Its high efficiency of 60% minimizes power losses and ensures optimal performance, which is crucial for battery-operated devices.
• Ruggedness: The device can withstand a VSWR (Voltage Standing Wave Ratio) of 10:1 at 28 V, indicating its durability and resilience in adverse conditions.
• Integrated ESD Protection: Electrostatic discharge protection is built into the device for enhanced reliability and longevity.

Applications

The AFT09MP055NR1 is primarily used in mobile two-way radios, including both commercial and public safety communication devices. Its robust design and high performance make it an ideal choice for handheld radios, vehicle-mounted systems, and base stations requiring consistent and reliable RF power amplification.

Package and Quality

Encased in a compact over-molded plastic package, the AFT09MP055NR1 is designed for easy installation and integration into radio equipment. NXP's commitment to quality ensures that each transistor meets rigorous standards for performance and durability, providing peace of mind for manufacturers and end-users alike.

With its blend of power, efficiency, and ruggedness, the AFT09MP055NR1 from NXP Semiconductors represents a top-tier solution for RF power amplification in two-way radio systems.
