BFU710F

Part No BFU710F
Manufacturer NXP / Nexperia
Catalog RF Transistors (BJT)
Description NPN wideband silicon germanium RF transistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Reference Date Code 11+
Reference case SOT343
Manufacturer NXP
Manufacturer Homepage www.nxp.com
Win Source Part Number 744849-BFU710F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BFU710F CAD Model

Description

NXP BFU710F Wideband Silicon Germanium RF Transistor

The NXP BFU710F is a cutting-edge RF Bipolar Junction Transistor (BJT) that leverages the performance benefits of Silicon Germanium (SiGe) technology to deliver superior high-frequency operation. Designed for a broad range of applications, this transistor is an ideal choice for designers looking to enhance their RF circuitry with a component that offers a perfect balance of efficiency, linearity, and bandwidth.

Key Features:

  • High Frequency Performance: The BFU710F operates at a transition frequency (fT) of 42 GHz, making it suitable for very high-frequency applications. This high transition frequency enables the transistor to be used in circuits operating well into the microwave frequency range.
  • Low Noise Figure: With a low noise figure of typically 1 dB at 1 GHz, the BFU710F is an excellent choice for low-noise amplifiers (LNAs) in sensitive RF receivers, ensuring clear signal amplification with minimal added noise.
  • High Gain-Bandwidth Product: The transistor offers a high gain-bandwidth product, which allows for substantial gain at high frequencies, a crucial parameter for amplifiers in communication systems.
  • Enhanced Linearity: The linearity of the BFU710F makes it suitable for applications where signal integrity is paramount, such as in digital broadcasting and cellular base stations.

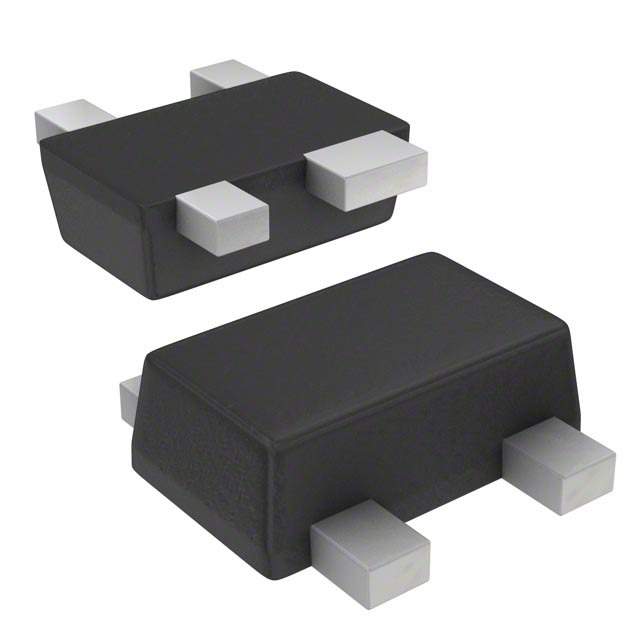

  • Surface-Mount Package: Encased in a 4-pin SOT343F plastic package, the BFU710F is designed for surface-mount technology (SMT), facilitating easy integration into modern PCB designs.
  • RoHS Compliant: Adhering to environmental standards, the BFU710F is RoHS compliant, making it a responsible choice for environmentally conscious manufacturers.

Applications:

The BFU710F is versatile and can be used in a variety of RF applications, including:

  • Low-noise amplifiers in wireless communication systems
  • Global Positioning System (GPS) receivers
  • Automotive radar systems
  • RFID readers
  • Satellite communications

With its exceptional performance and reliability, the NXP BFU710F is an excellent transistor choice for designers and engineers looking to push the boundaries of RF circuit design.
