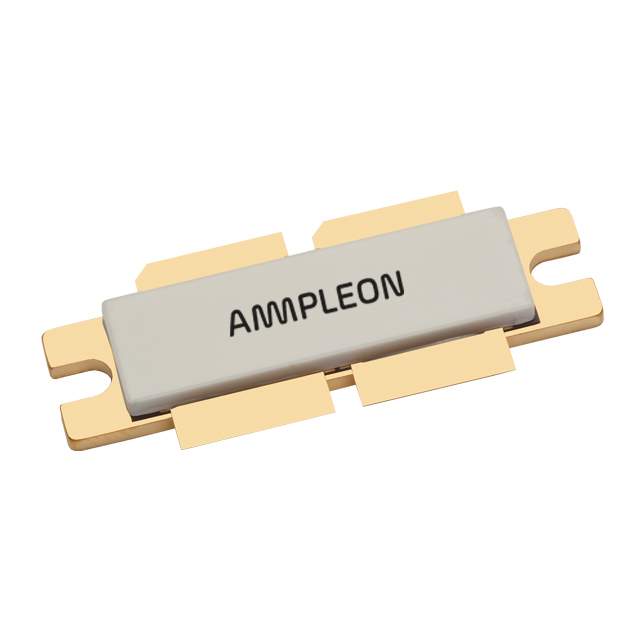

The NXP BLL6H1214-500 is a state-of-the-art LDMOS transistor designed for high-power, high-frequency applications. This robust transistor is engineered to deliver exceptional performance in broadcast transmitters, particularly for UHF television broadcasting. It is a testament to NXP's commitment to providing cutting-edge technology for RF power amplification.

Key Features

• Frequency Range: The BLL6H1214-500 operates effectively in the 470 MHz to 860 MHz frequency range, making it versatile for various broadcast applications.
• High Power Output: With a power output capability of 500W, this LDMOS transistor can handle high-power applications with ease, ensuring clear and reliable signal transmission.
• High Efficiency: The device is designed for high efficiency, which minimizes power loss and ensures optimal performance. This efficiency translates to cost savings and reduced thermal management requirements.
• Integrated ESD Protection: The BLL6H1214-500 includes integrated ESD protection, safeguarding the device from electrostatic discharges which can be detrimental to sensitive electronic components.
• Ruggedness: This transistor is built to withstand severe load mismatch conditions, ensuring reliable performance and longevity even in the most demanding environments.

Applications

The BLL6H1214-500 is ideal for a wide range of applications, including:

• UHF Television Broadcast Transmitters
• Industrial, Scientific, and Medical (ISM) Applications
• Professional RF Power Amplifiers

Quality and Reliability

NXP is known for its commitment to quality and reliability, and the BLL6H1214-500 is no exception. It is manufactured to meet the highest industry standards, ensuring consistent performance and durability. Customers can trust this LDMOS transistor to deliver superior results in their high-power RF applications.
