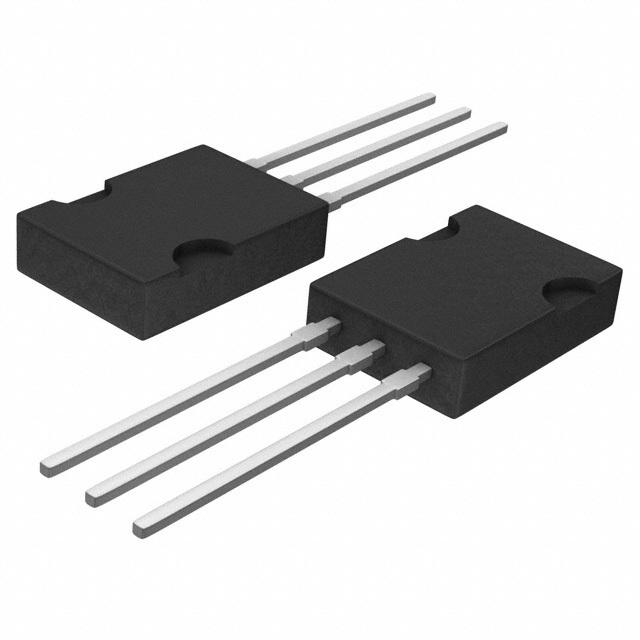

The NXP BT134-800,127 is a passivated, sensitive gate triac in a SOT82 plastic package intended for use in general purpose bidirectional switching and phase control applications. This product is part of the BT134 series triacs, which are known for their high performance and reliability in a wide range of temperature conditions, making them suitable for a variety of applications.

Key Features

• Repetitive Peak Off-State Voltage (Vdrm): 800V, providing a high breakdown voltage that is suitable for applications with high peak voltages.
• Gate Trigger Current (Igt): This triac has a low IGT of less than 10 mA, making it easily triggered with microcontrollers and other logic-level devices.
• On-State Current (It(rms)): Capable of handling up to 4 A RMS on-state current, enabling it to control moderate power devices.
• Non-repetitive Peak On-state Current (Itsm): A high surge current capability of up to 33 A, which is beneficial for applications that experience short-term overloads.
• Operating Junction Temperature Range: -40°C to +125°C, allowing for stable operation under extreme environmental conditions.
• Package: Supplied in a SOT82 package, which is compact and suitable for surface-mount technology (SMT).
• Applications: Designed for use in applications such as motor control, domestic lighting, heating, and static switching.

Product Applications

The NXP BT134-800,127 triac is versatile and can be used in various applications. It is commonly implemented in home appliances for controlling electric motors, such as in washing machines and vacuum cleaners. Additionally, it is suitable for lighting control systems, including dimmers and switches, and for heating applications like electric heaters and thermostats. Its high surge current capability also makes it ideal for use in power tools and other equipment that require robust performance.

Quality and Reliability

NXP Semiconductors is known for its commitment to quality, and the BT134-800,127 is no exception. It is manufactured to meet high standards, ensuring reliable performance and a long operational life for the end product. Its robust design is built to withstand typical electrical stresses encountered in commercial and industrial applications.
