The BT136B-800E is a high-performance triac manufactured by NXP Semiconductors, designed to control AC power in a variety of applications. This semiconductor device is capable of switching and controlling high-current loads within a compact package, making it a popular choice for designers in the fields of consumer and industrial electronics.

Key Features

• High Blocking Voltage: With a maximum repetitive peak off-state voltage (Vdrm) of 800V, the BT136B-800E is suitable for applications requiring high voltage operation.
• Current Handling Capacity: This triac can handle currents up to 4A RMS, ensuring reliable performance for moderate power applications.
• Sensitive Gate: It features a sensitive gate that allows the triac to be triggered with low gate currents, making it compatible with microcontroller outputs and other low-power driving signals.
• Quadrant Triggering: Capable of being triggered in all four quadrants, providing flexibility in control and making it ideal for phase control operations.
• Isolated Mounting Tab: The device comes with an isolated mounting tab rated at 250V (RMS), which simplifies the installation process and enhances safety.

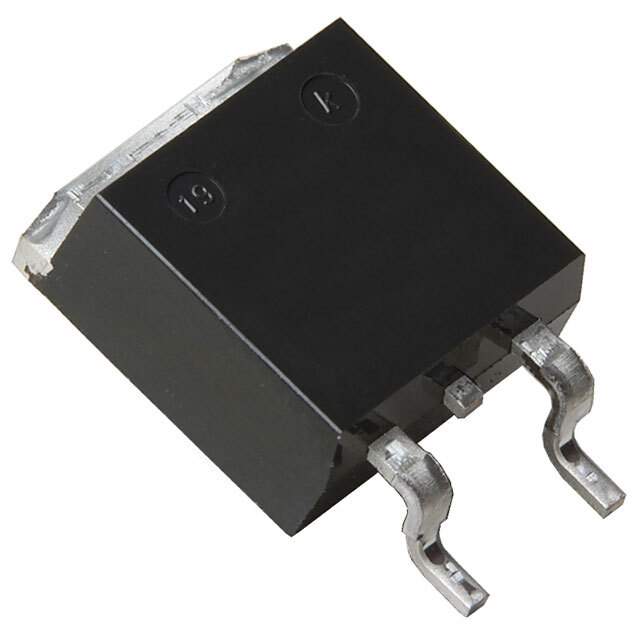

• Compact and Durable: Encased in a robust and compact D2PAK surface-mount package, the BT136B-800E saves space on the PCB and is designed for long-term reliability.

Applications

The BT136B-800E is versatile and can be used in various applications, including:

• Motor control circuits
• Lighting dimmers
• Domestic and industrial appliances
• Heating controls
• Static switching

Conclusion

With its robust performance and flexible features, the BT136B-800E from NXP is an excellent choice for designers looking to implement efficient AC power control in their systems. Its high voltage rating, sensitive gate, and compact form factor make it a reliable and space-saving solution for a wide range of power control applications.
