Introducing the NXP IP4283CZ10-TBR: High-Performance ESD Protection

The NXP IP4283CZ10-TBR is a state-of-the-art ESD protection device designed to safeguard high-speed interfaces from electrostatic discharge damages. This compact and efficient solution is ideal for protecting voltage-sensitive components that are connected to data and transmission lines from the perils of ESD without compromising signal integrity.

Key Features

• High ESD Protection: With its robust design, the IP4283CZ10-TBR offers exceptional protection against electrostatic discharges, ensuring that sensitive electronic components remain safe and functional even in the most challenging environments.
• Low Clamping Voltage: The device provides a very low clamping voltage, which is crucial for the protection of modern electronics that operate at lower voltage levels.
• Low Capacitance: It features ultra-low line capacitance, minimizing the impact on signal quality, which is particularly important for high-speed data lines such as USB 2.0, HDMI, and Ethernet.
• High Integration: The IP4283CZ10-TBR integrates multiple ESD diodes in a single package, allowing for a reduction in PCB space and simplifying the design of ESD protection circuits.

Applications

The NXP IP4283CZ10-TBR is versatile and can be used in a wide range of applications. It is particularly well-suited for:

• Consumer electronics like smartphones, tablets, and laptops
• Communication systems including network switches and routers
• Digital video interfaces such as HDMI and DisplayPort
• Peripheral interfaces like USB ports and other high-speed data lines

Package and Quality

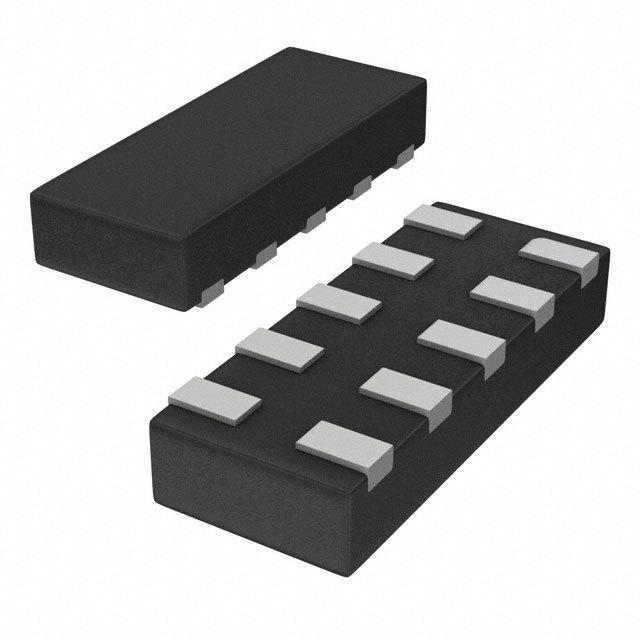

Encased in a leadless, ultra-small DFN2510A-10 (SOT1176-1) package, the IP4283CZ10-TBR is designed for space-constrained applications. It is also RoHS compliant and is manufactured under NXP's commitment to high-quality standards, ensuring reliability and performance consistency.

With the NXP IP4283CZ10-TBR, designers and engineers can confidently develop electronics that are not only resistant to the transient conditions of daily use but also meet the rigorous demands of high-speed data communication, all while maintaining a compact and efficient design footprint.
