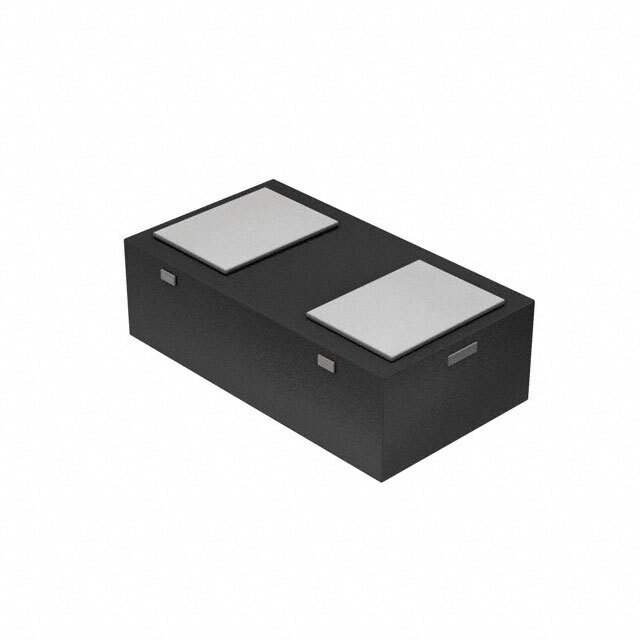

CPDQC24VE-HF Real Image
Same model may have multiple batches, images only for reference.

CPDQC24VE-HF

Part No CPDQC24VE-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 24VWM 46V 0402C/SOD923
Datasheet
CPDQC24VE-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Comchip Technology
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V (Max)
Voltage - Breakdown (Min) 26.5V
Voltage - Clamping (Max) @ Ipp 46V
Current - Peak Pulse (10/1000µs) 3A (8/20µs)
Power - Peak Pulse 138W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 13pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 0402 (1006 Metric)
Supplier Device Package 0402C/SOD-923F
Base Product Number CPDQC24
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 580191-CPDQC24VE-HF
Ultra Librarian 3D Model Ultra Librarian CPDQC24VE-HF CAD Model

Description

The 580191-CPDQC24VE-HF is a bidirectional TVS diode in a surface mount 0402 (1006 Metric) package.

  • Reverse Standoff Voltage: 24 V
  • Breakdown Voltage: 26.5 V
  • Clamping Voltage @ Peak Pulse Current: 46 V
  • Peak Pulse Power: 138 W
  • Application Field: general-purpose circuit protection
  • Capacitance: 13 pF @ 1 MHz
  • Peak Pulse Current: 3 A for a 10/1000µs waveform
  • Manufacturer: Comchip Technology
