The NXP LPC2210FBD144/01K is a robust microcontroller that combines the power and versatility of NXP's LPC2000 family with the affordability required for high-volume applications. This microcontroller is designed to meet the needs of a wide range of industrial, consumer, and communication applications, providing a cost-effective solution without compromising on performance.

Key Features

• Core: The LPC2210 is built around a 16/32-bit ARM7TDMI-S CPU core, which operates at frequencies up to 60 MHz, delivering the optimal balance between processing power and power consumption.
• Memory: It features 256 KB of on-chip high-speed Flash memory and 16 KB of static RAM, providing ample space for complex applications and data storage.

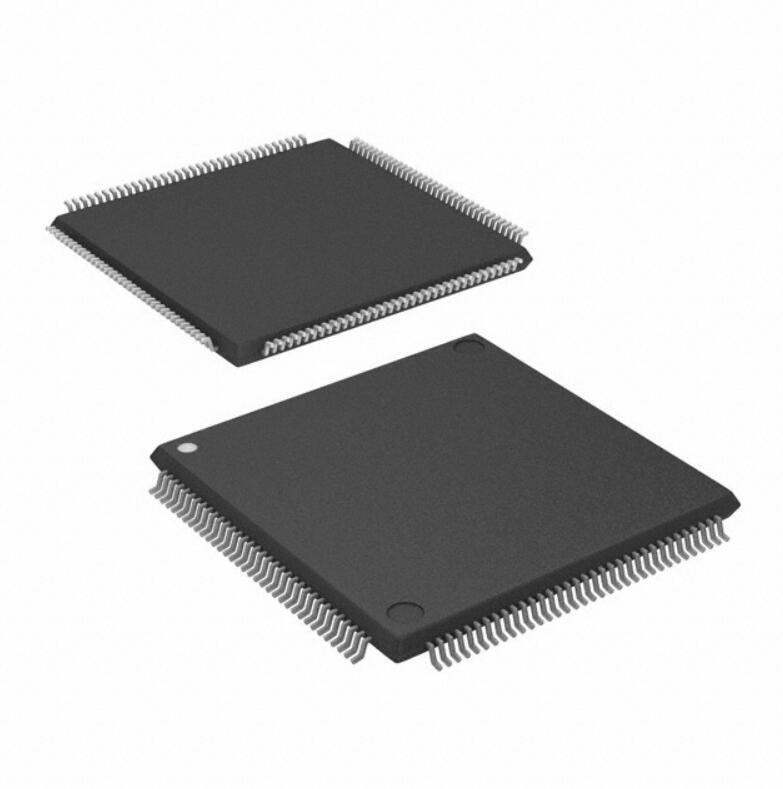

• Package: The microcontroller comes in a compact 144-pin LQFP (Low-profile Quad Flat Package), which is suitable for space-constrained applications while offering ample I/O options.
• Peripherals: A rich set of peripherals includes multiple 32-bit timers, an RTC, PWM channels, two UARTs, I2C-bus, SPI, SSP, and CAN interfaces, allowing for versatile connectivity and control options.
• System Control: The device includes a versatile system control block for power control, clock control, and system peripherals management.
• Power Management: Its power management unit supports multiple power modes, enabling the design of energy-efficient applications.
• Debugging and Emulation Support: The LPC2210 offers JTAG and embedded trace interfaces, facilitating easy development, debugging, and in-system programming.

Applications

The LPC2210FBD144/01K is ideal for applications that require high-performance signal processing and control, such as embedded control, industrial automation, security systems, and point-of-sale systems. Its blend of processing power, memory, and peripherals also make it well-suited for protocol converters, voice recognition, and low-end imaging systems.

Conclusion

With its advanced features and capabilities, the NXP LPC2210FBD144/01K stands out as a versatile and efficient microcontroller that can serve as the heart of a wide array of electronic products. Its integration of a powerful ARM core and a comprehensive set of peripherals into a single chip makes it an excellent choice for designers looking to create sophisticated systems with minimized component count and reduced development time.
