NXP LPC2468FET208 Microcontroller

The NXP LPC2468FET208 is a high-performance microcontroller unit (MCU) that is part of the LPC2400 family, renowned for its advanced features and capabilities in embedded applications. This microcontroller is designed to meet the needs of complex and demanding applications, offering a robust set of features that make it an ideal choice for industrial control, medical systems, and communication gateways.

The LPC2468FET208 is built around a 16/32-bit ARM7TDMI-S CPU core, which operates at up to 72 MHz, providing users with a perfect blend of processing power and energy efficiency. It is equipped with 512 KB of on-chip high-speed flash memory, allowing for quick and reliable storage of application code and data. Additionally, it includes 98 KB of RAM for efficient data handling and operation.

This microcontroller stands out with its versatile connectivity options, including USB 2.0 Full-Speed Device, Host, OTG, Ethernet MAC, CAN, and multiple serial interfaces (UART, I2C, SPI, SSP). These interfaces provide a wide array of options for connecting to different peripherals and networks, making it easy to integrate the LPC2468FET208 into a variety of systems.

The LPC2468FET208 also features an external memory controller, which supports both SDRAM and static memories. This allows developers to expand the available memory according to their application requirements. The integrated 10-bit ADC and DAC offer precision analog input and output capabilities, ideal for sensor interfacing and control applications.

With its Real-Time Clock (RTC), General Purpose DMA, and multiple timers, the LPC2468FET208 is well-suited for time-sensitive tasks and complex algorithm implementations. Its power management modes enable energy-saving strategies, crucial for battery-operated devices.

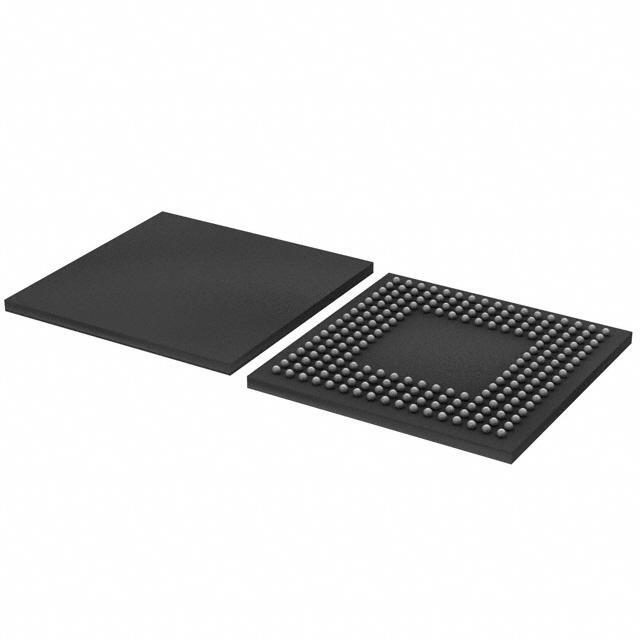

Encased in a compact 208-pin LQFP package, the NXP LPC2468FET208 MCU provides a scalable and space-efficient solution for advanced embedded systems. Its wide operating temperature range and the ability to work under harsh environmental conditions make it a reliable component for industrial-grade applications.

Overall, the NXP LPC2468FET208 is a powerful and flexible microcontroller that delivers a comprehensive set of features to meet the requirements of a wide range of embedded systems, ensuring performance, connectivity, and reliability.
