Products specifications

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 51 Weeks
Features Small Engine PMIC 48-LQFP-EP (7x7)
Manufacturer NXP
Package Tray
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount

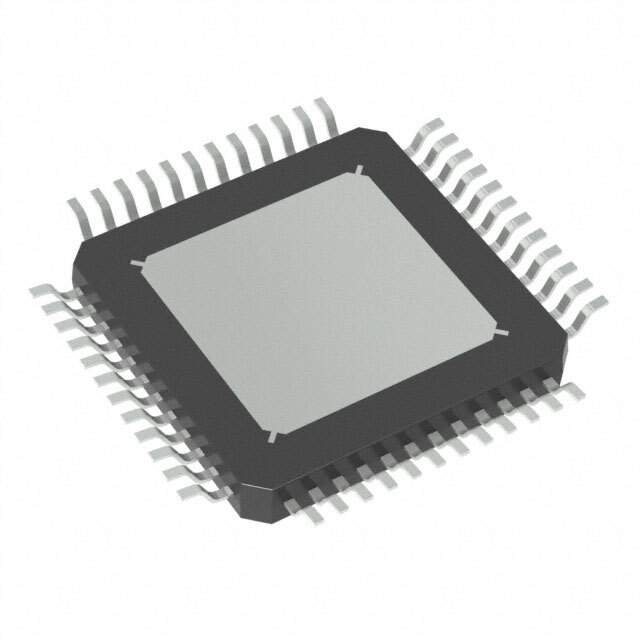

Package 48-LQFP Exposed Pad
Case / Package 48-LQFP-EP (7x7)
Family Name MC33813
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number MC33813AE-ND, 568-14457, 935311302557
Quantity per package 250
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 883403-MC33813AE
Ultra Librarian 3D Model Ultra Librarian MC33813AE CAD Model

Description

Introducing the MC33813AE Engine Control IC from NXP

The MC33813AE is a sophisticated engine control integrated circuit (IC) designed and manufactured by NXP Semiconductors, a leader in automotive electronics. This high-performance product is tailored to meet the demanding requirements of modern automotive engine management systems. Its robust construction and advanced features make it an ideal choice for controlling and diagnosing the operation of various solenoid and ignition coils in combustion engines.

Key Features of the MC33813AE:

  • Flexible Fuel Injector Control: The MC33813AE provides precise control for up to four fuel injectors, allowing for fine-tuning of the fuel delivery in various engine conditions. This results in improved fuel economy and reduced emissions.
  • Integrated Ignition Control: It includes integrated circuits for direct control of ignition coil drivers, ensuring efficient and reliable spark generation for optimal combustion.
  • On-Chip Diagnostics: With its built-in diagnostic features, the MC33813AE can detect and report system faults, enhancing the safety and reliability of the engine management system.
  • Programmable Over-Current Protection: The device features programmable over-current protection for the injector drivers, safeguarding the IC and injectors from potential damage due to electrical faults.
  • Low Power Consumption: Designed with power efficiency in mind, the MC33813AE operates with minimal power waste, making it suitable for a wide range of automotive applications.

Applications:

The MC33813AE is versatile and can be used in a variety of automotive applications, including:

  • Gasoline and diesel engine vehicles
  • Motorcycles and scooters with electronic fuel injection (EFI)
  • Small engines in lawn mowers and generators
  • Marine outboard engines

Reliability and Quality:

NXP's commitment to quality ensures that the MC33813AE meets the stringent standards required for automotive components. The IC is designed to withstand harsh operating conditions and is tested rigorously to ensure its reliability over the vehicle's lifetime.

By integrating the MC33813AE into your engine management system, you can expect enhanced performance, reduced emissions, and a more reliable engine operation. NXP's expertise in automotive technology makes the MC33813AE a smart choice for your engine control needs.
