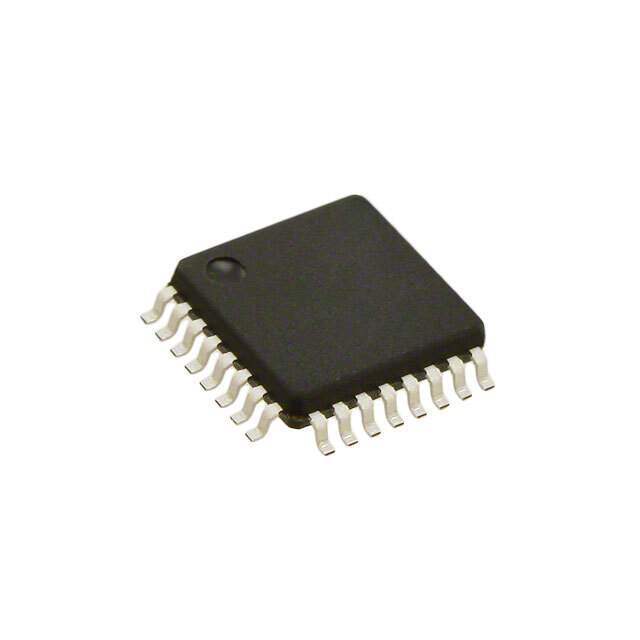

MC56F8013VFAER2 NXP USA Inc.
Same model may have multiple batches, images only for reference.

MC56F8013VFAER2

Part No MC56F8013VFAER2
Manufacturer NXP / Nexperia
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 16KB FLASH 32LQFP
Datasheet
MC56F8013VFAER2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1324466-MC56F8013VFAER2
Category Integrated Circuits (ICs)> Embedded >Microcontrollers
Mfr NXP USA Inc.
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Core Processor 56800E
Core Size 16-Bit
Speed 32MHz
Connectivity I2C, SCI, SPI
Peripherals POR, PWM, WDT
Number of I/O 26
Ultra Librarian 3D Model Ultra Librarian MC56F8013VFAER2 CAD Model

Description

  • Up to 32 MIPS at 32MHz core frequency
  • DSP and MCU functionality in a unified, C-efficient architecture
  • 56F8013 device offers 16KB Program Flash 56F8011 device offers 12KB Program Flash
  • 56F8013 device offers 4KB Unified Data/Program RAM 56F8011 device offers 2KB Unified Data/Program RAM
  • One 6-channel PWM module
  • Two 3-channel 12-bit ADCs
  • One Serial Communication Interface (SCI) with LIN slave functionality
