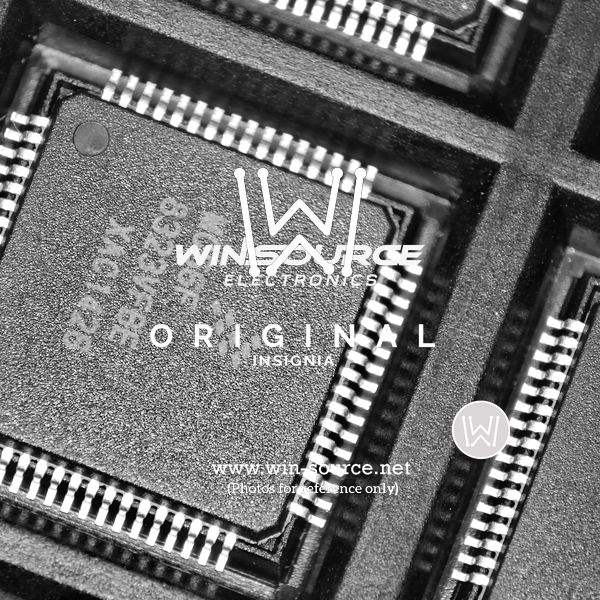

The NXP MC56F8323VFBE is a highly integrated digital signal controller (DSC) that combines the processing power of a digital signal processor (DSP) with the functionality and ease-of-use of a microcontroller (MCU). This hybrid device is part of NXP's 56F8300 series and is designed to meet the needs of sophisticated and demanding applications requiring a combination of digital signal processing and control in a single chip.

Key Features

• Core: The MC56F8323VFBE features a 32-bit 56800E core that operates at up to 60MHz, delivering robust processing capabilities for complex algorithms and control tasks.
• Memory: It comes equipped with 64KB of Program Flash, 4KB of Data Flash, and 4KB of RAM, providing ample space for code storage and data manipulation.
• Peripherals: A wide range of integrated peripherals are available, including a 4-channel DMA controller, two quadrature decoders, and a 12-bit analog-to-digital converter (ADC) with up to 16 channels, enhancing the device's ability to handle various input/output operations.
• Communication Interfaces: The DSC supports multiple communication protocols such as I2C, SPI, and UART, allowing for easy integration into existing systems and facilitating communication with other devices.
• Timers: It includes multiple timers, including a PWM timer for motor control applications, ensuring precise timing and control for a range of uses.
• Packaging: The device is offered in a compact 64-pin LQFP package, making it suitable for space-constrained applications.

Applications

The NXP MC56F8323VFBE is versatile and can be used in a variety of applications. It is particularly well-suited for motor control, power management, and industrial automation. Its high level of integration and performance capabilities make it ideal for applications that require both complex computation and precise control, such as robotics, smart sensors, and renewable energy systems.

Design Support

NXP provides comprehensive development support for the MC56F8323VFBE, including software tools, reference designs, and technical documentation to help designers shorten development cycles and get to market faster. With its robust feature set and support ecosystem, the MC56F8323VFBE is a reliable and powerful solution for integrating DSP and MCU functionalities in a single device.
