Products specifications

Categories Integrated Circuits (ICs)
Manufacturer NXP
Series M680x0
Packaging Tray
Part Status Obsolete(EOL)
Core Processor 68040
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 33MHz
Graphics Acceleration No
Voltage - I/O 5.0V
Operating Temperature Range 0°C ~ 70°C (TA)
Package 184-BCQFP
Manufacturer Package 184-CQFP (31.3x31.3)
Additional Interfaces SCI, SPI
Win Source Part Number 787864-MC68EC040FE33A
Popularity Medium
Supply and Demand Status Limited
Family Name MC68EC040
Introduction Date July 15, 1999
ECCN 3A991.a.2
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MC68EC040FE33A CAD Model

Description

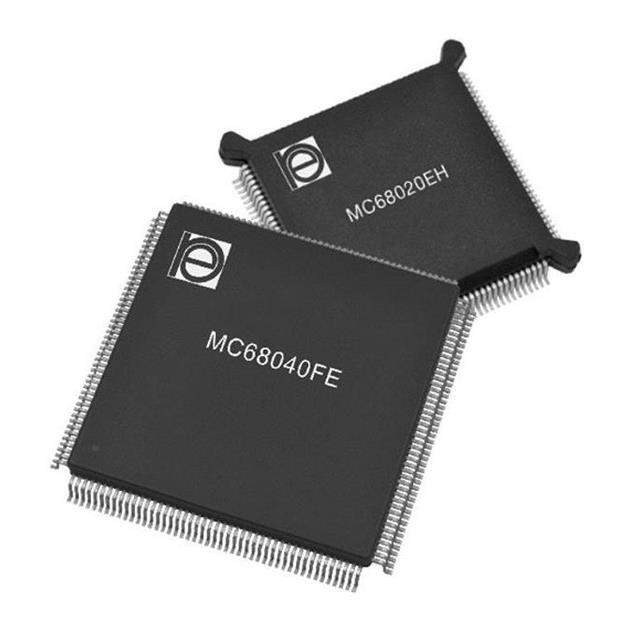

Product Overview: MC68EC040FE33A

The MC68EC040FE33A is a high-performance microprocessor developed by NXP Semiconductors, designed to deliver exceptional computing capabilities for embedded systems. This integrated circuit is part of the illustrious 68000 series of microprocessors, renowned for their reliability and widespread use in a variety of applications.

Key Features

  • Clock Speed: The processor boasts a clock speed of 33 MHz, providing a balanced combination of performance and power efficiency for time-sensitive operations.
  • Architecture: It is based on a 32-bit architecture, allowing for efficient handling of large data types and enhanced overall performance.
  • Instruction Set: The MC68EC040FE33A utilizes a rich instruction set that is compatible with the 68000 series, ensuring ease of programming and code portability.
  • Cache Memory: Featuring an integrated cache system with separate instruction and data caches, it helps in optimizing system performance by reducing memory access times.
  • Power Consumption: Designed with power efficiency in mind, this microprocessor is ideal for applications where power consumption is a critical factor.
  • Package: The unit comes in a reliable and sturdy QFP (Quad Flat Package), ensuring secure mounting and connection to PCBs (Printed Circuit Boards).

Applications

The versatility of the MC68EC040FE33A makes it suitable for a wide range of applications, including but not limited to:

  • Embedded control systems
  • Networking equipment
  • Industrial automation
  • Telecommunications infrastructure
  • Advanced consumer electronics

Quality and Reliability

NXP Semiconductors is known for its commitment to quality and the MC68EC040FE33A is no exception. It is manufactured to meet high standards of performance and reliability, ensuring that it can withstand the rigors of demanding applications. With its robust feature set and dependable design, the MC68EC040FE33A is an excellent choice for designers and engineers looking to leverage a powerful microprocessor in their next project.
