The NXP MC9S08SH8MWJ is a powerful and versatile 8-bit microcontroller designed for a wide range of applications. This microcontroller is part of the S08 family, known for its high performance and low power consumption. The MC9S08SH8MWJ is particularly suited for industrial control, automotive, consumer electronics, and smart sensor applications.

Key Features

• CPU: 8-bit HCS08 Central Processing Unit, which provides a robust instruction set and efficient operation at speeds up to 40 MHz.
• Flash Memory: 8 KB of on-chip in-circuit programmable flash memory with a 10,000 write/erase cycle endurance, ensuring ample space for complex programs and data storage.
• RAM: 512 Bytes of Random Access Memory, facilitating quick data manipulation and buffer storage.
• Input/Output: Multiple general-purpose input/output pins (GPIO) for interfacing with a variety of peripherals and sensors.
• Timers: Integrated 16-bit timers with a range of modes for precise event counting and interval timing.
• Analog-to-Digital Converter (ADC): An onboard 10-bit ADC allows for accurate analog signal conversion, essential for sensor interfacing and data acquisition tasks.
• Communication Interfaces: Includes I2C, SPI, and SCI serial communication modules for flexible connectivity with other microcontrollers and peripheral devices.
• Power Management: Features multiple power-saving modes including stop and wait modes, which significantly reduce power consumption during idle times.

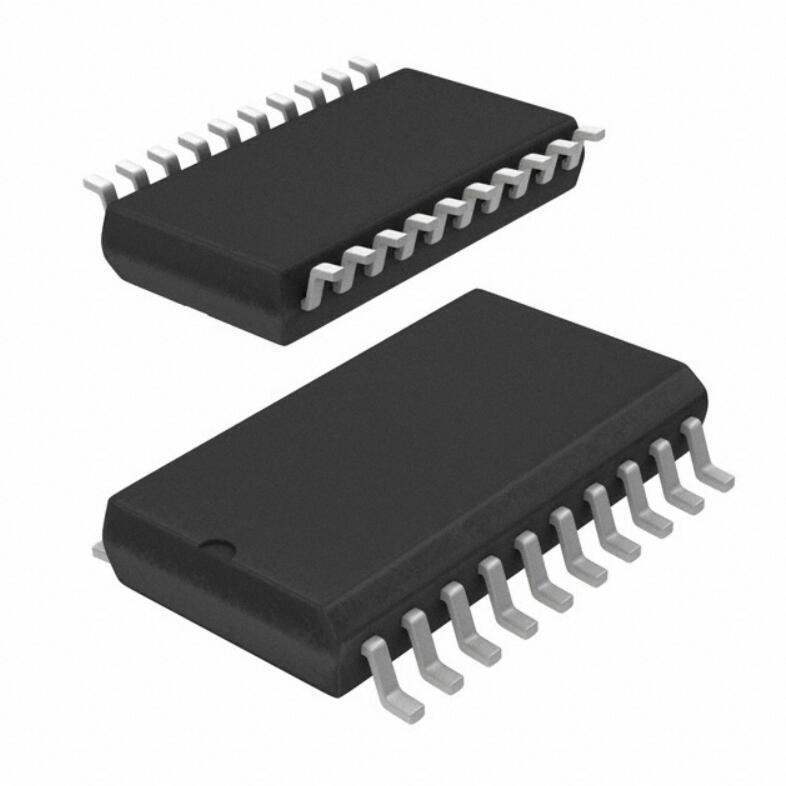

• Package: Available in a compact 20-pin SOIC package, making it suitable for space-constrained applications.
• Operating Temperature Range: Designed to operate reliably within an industrial temperature range of -40°C to +85°C.

Applications

The MC9S08SH8MWJ is ideal for applications that require a balance between performance and power efficiency. Its robust feature set enables it to be used in:

• Smart sensors and monitoring systems
• Home automation and security devices
• Automotive control systems
• Industrial automation and process control
• Consumer electronics

With its comprehensive feature set and flexible IO options, the NXP MC9S08SH8MWJ microcontroller is a reliable choice for developers looking to create sophisticated and power-conscious designs.
