NXP MC9S12DT256VFUE Microcontroller

The NXP MC9S12DT256VFUE is a high-performance, 16-bit microcontroller designed for automotive and industrial applications that require sophisticated control and processing capabilities. As a member of the HCS12 family, this microcontroller integrates a wealth of features to support complex real-time control tasks and connectivity.

Key Features:

• Core: The MC9S12DT256VFUE is built around the HCS12 core, which operates at a frequency of up to 25 MHz, delivering robust performance for demanding applications.
• Memory: It boasts a substantial memory capacity, including 256 KB of flash memory for program storage and 12 KB of RAM for data processing, ensuring ample space for complex software applications.
• Digital I/O: This microcontroller offers a wide range of digital input/output options, including up to 59 general-purpose I/O pins, allowing for versatile interfacing with peripheral devices.
• Timers: Equipped with multiple timers, including 8-channel and 16-channel 16-bit timers, the MC9S12DT256VFUE can handle precise timing and event management tasks, essential for real-time control systems.
• Communication Interfaces: With multiple communication interfaces such as SCI (Serial Communication Interface), SPI (Serial Peripheral Interface), and IIC (Inter-Integrated Circuit), this microcontroller facilitates easy data exchange with other systems and peripherals.
• Analog-to-Digital Converter: The integrated 8-channel, 10-bit ADC (Analog-to-Digital Converter) allows the microcontroller to process analog signals, making it suitable for sensor-based applications.

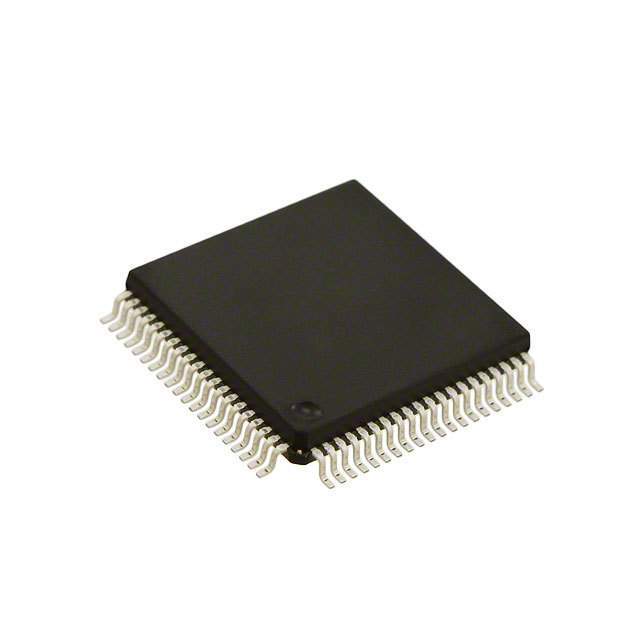

• Package: It comes in a 80-QFP (Quad Flat Package) that is both space-efficient and suitable for automated assembly processes, aiding in compact and reliable system design.
• Operating Voltage: The device operates within a voltage range of 2.35V to 5.25V, accommodating various power supply configurations and ensuring compatibility with a wide range of external components.

Applications:

The versatility of the MC9S12DT256VFUE makes it an ideal choice for a multitude of applications, including but not limited to automotive control systems, industrial automation, robotics, and embedded systems requiring a balance of processing power, memory, and connectivity features.

Overall, the NXP MC9S12DT256VFUE microcontroller stands out as a robust and feature-rich solution for engineers looking to develop advanced control systems with stringent performance and reliability requirements.
