Product Overview: NXP MC9S12XDP512VAG Microcontroller

The NXP MC9S12XDP512VAG is a highly integrated, 16-bit microcontroller that is part of the HCS12X family of microcontrollers. Designed for automotive and industrial applications, this powerful MCU combines high-performance data processing capabilities with a rich set of peripheral features.

Key Features:

• Core: The MC9S12XDP512VAG is built around the HCS12X CPU which operates at a frequency of up to 80 MHz. Its enhanced instruction set and addressing modes offer efficient computation and data handling.
• Memory: It boasts an impressive 512 KB of flash memory, 32 KB of RAM, and 4 KB of EEPROM. This ample memory space allows for complex program execution and data storage without the need for external memory components.
• Digital and Analog Peripherals: The device includes a multitude of peripherals such as multiple digital communication interfaces (SCI, SPI, CAN), an 8-channel IC/OC enhanced capture timer, an 8-channel, 10-bit A/D converter, and two 8-channel PWM modules, providing versatility for a wide range of application requirements.
• Integrated Physical Layer: With an integrated CAN physical layer, the microcontroller simplifies design complexities and reduces the need for additional components in CAN-based applications.

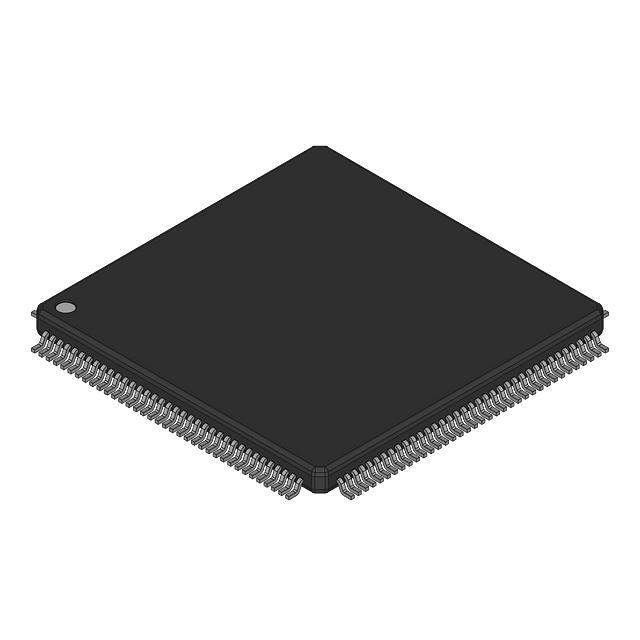

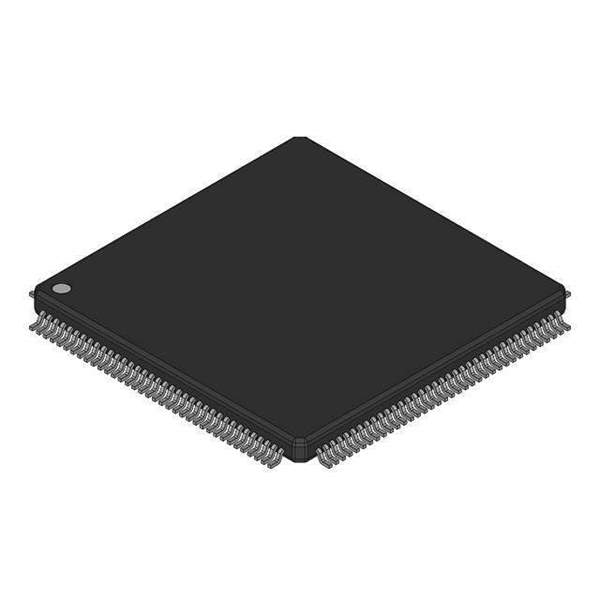

• Package: The MC9S12XDP512VAG is available in a 144-pin LQFP package, which is ideal for space-constrained applications.
• Temperature Range: It operates within an extended temperature range from -40°C to +125°C, making it suitable for harsh operating environments.

Applications:

The robust feature set of the MC9S12XDP512VAG makes it an excellent choice for a variety of applications, including automotive control systems, industrial control systems, robotics, sensor networks, and complex embedded systems.

Support and Resources:

NXP provides comprehensive support for the MC9S12XDP512VAG with a suite of development tools, including software libraries, development boards, and debugging tools, to accelerate the design and development process. Additionally, a wealth of documentation, application notes, and technical support are available to assist designers in fully leveraging the capabilities of this advanced microcontroller.
