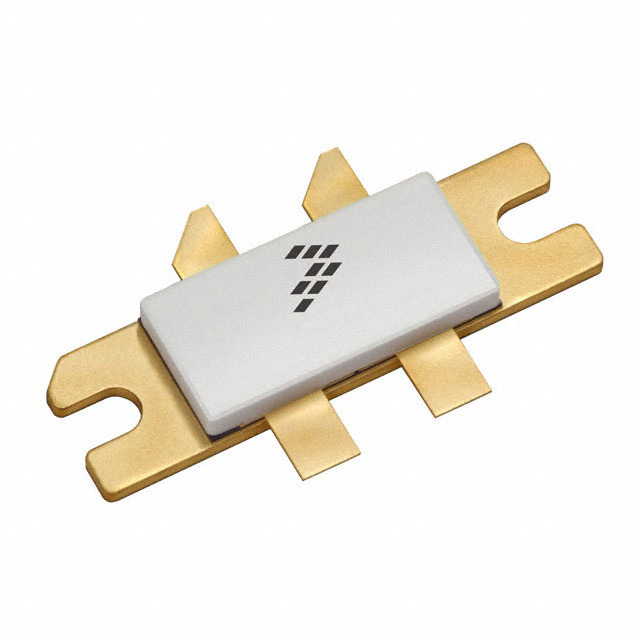

The NXP MD7P19130HR3 is a state-of-the-art RF power LDMOS transistor designed for high-power radio frequency applications. This robust and reliable transistor is part of NXP's high-performance product line, engineered to deliver exceptional efficiency and power density. It's an ideal choice for a wide range of uses, including broadcast, industrial, medical, and radio and television transmission.

Key Features

• High RF Output Power: The MD7P19130HR3 is capable of delivering a high output power, which is essential for applications requiring wide coverage and long-range transmission.
• Wide Frequency Range: This transistor operates over a broad frequency range, making it versatile for various RF applications.
• High Efficiency: With its advanced LDMOS technology, the MD7P19130HR3 achieves high efficiency, reducing overall system power consumption and heat generation.
• Excellent Thermal Stability: The product is designed to maintain performance over a wide temperature range, ensuring reliability in demanding environments.
• Ruggedness: It's built to withstand high voltage standing wave ratios (VSWR), which makes it resilient to mismatches in the RF path that could otherwise damage less robust components.

Applications

The NXP MD7P19130HR3 is suitable for a variety of applications, including:

• Broadcast transmitters for AM, FM, TV, and digital audio broadcasting (DAB)
• Industrial heating and plasma generation
• Medical applications such as MRI and RF ablation
• RF energy applications including cooking, lighting, and ignition
• Professional and military radio communications

Technical Specifications

Some of the technical specifications of the MD7P19130HR3 include:

• Supply Voltage: 50V
• Output Power: 130W CW
• Frequency Range: 1930 MHz to 1990 MHz
• Gain: 16 dB
• Efficiency: 45%
• Integrated ESD protection

With its combination of power, efficiency, and ruggedness, the NXP MD7P19130HR3 RF power transistor is a top choice for designers looking to push the boundaries of RF performance in their applications.
