Product Overview: MPX5700GP1 - NXP

The MPX5700GP1 is a state-of-the-art pressure sensor from NXP Semiconductors, designed to deliver highly accurate and reliable performance for a wide range of applications. This piezoresistive transducer is a member of the MPX5700 series, which is renowned for its advanced sensor technology that can measure absolute pressure.

The sensor is capable of measuring pressure ranging from 15 to 700 kPa, making it suitable for a broad spectrum of applications, from automotive engine control systems to industrial controls. Its high sensitivity output scales with the applied pressure, and it is temperature compensated from -40°C to +125°C, ensuring stable performance across a wide temperature range.

One of the key features of the MPX5700GP1 is its integrated signal conditioning, which simplifies integration into various systems. The sensor outputs an analog voltage that is directly proportional to the pressure it measures. This analog output can easily be interfaced with microcontrollers, analog-to-digital converters, or other circuitry, facilitating simple and efficient design implementations.

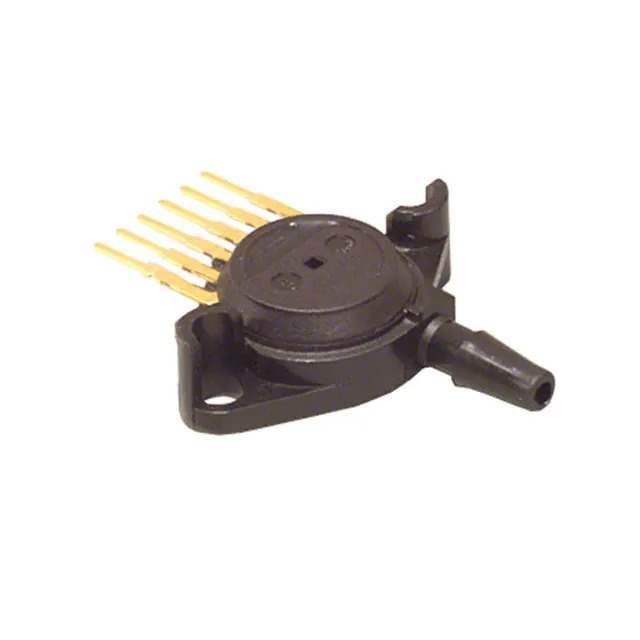

The MPX5700GP1 is also designed for durability and robustness, encapsulated in a rugged, small form factor package with stress isolation features to enhance performance in challenging environments. The sensor's package is designed to be compatible with various mounting techniques, ensuring easy installation and integration into different systems.

Key specifications of the MPX5700GP1 include:

• Pressure Range: 15 to 700 kPa
• Temperature Compensated: -40°C to +125°C
• Sensitivity: Varies with pressure, with a typical value of 6.4 mV/kPa at 5V supply
• Supply Voltage: 4.85 to 5.35 V
• Accuracy: ±2.5% Maximum Error over 0° to 85°C

In summary, the MPX5700GP1 from NXP is a versatile and reliable pressure sensor that offers precise measurements for a multitude of applications. Its robust design, ease of use, and temperature compensation make it an excellent choice for engineers who require a high-quality pressure sensing solution.
