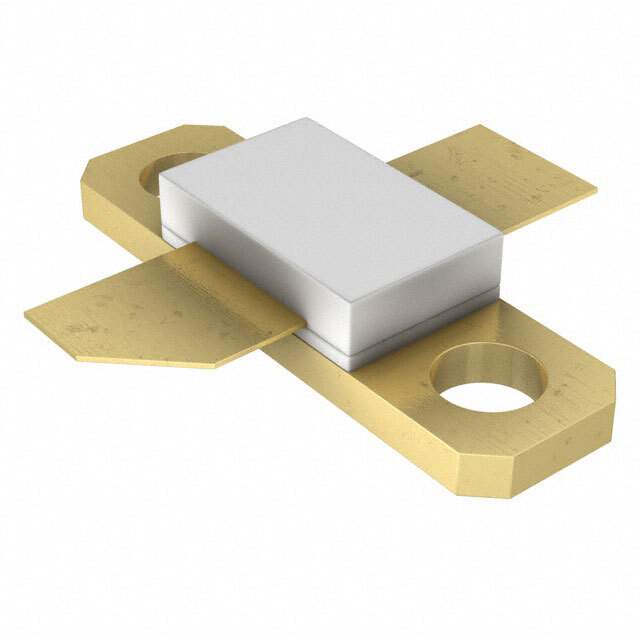

The MRF373ALR5 is a high-performance RF power LDMOS transistor designed by NXP Semiconductors. This field-effect transistor is specifically created for broadband applications operating at frequencies ranging from 1.8 to 600 MHz. The device is part of NXP's renowned MRF series, which is well-known for its reliability and efficiency in RF power amplification.

Key Features

• Advanced LDMOS Technology: Utilizes NXP's latest laterally diffused metal-oxide semiconductor technology for high efficiency and gain.
• High Power Output: Capable of delivering a high output power of up to 375 Watts CW, making it suitable for a wide range of high-power applications.
• Broadband Frequency Range: Designed for a wide frequency spectrum, ensuring versatility across various communication systems.
• Integrated ESD Protection: Comes with built-in electrostatic discharge protection for enhanced durability and reliability.
• Excellent Thermal Stability: Features an excellent thermal performance, ensuring stability and longevity even under strenuous conditions.
• Easy Integration: The transistor is provided in a RoHS compliant, over-molded plastic package that is easy to integrate into various circuit designs.

Applications

The MRF373ALR5 is ideal for a variety of applications, including but not limited to:

• Broadcast transmitters
• Industrial, scientific, and medical (ISM) applications
• Base station applications for mobile radio
• RF energy applications including plasma generation, cooking, and heating

Technical Specifications

The MRF373ALR5 boasts a robust set of technical specifications, including:

• Drain-source voltage (Vds): up to 65V
• Gate-source voltage (Vgs): ±20V
• Operating frequency range: 1.8 - 600 MHz
• Power gain: 21 dB at 230 MHz
• Efficiency: up to 70%
• Operating temperature range: -40°C to +150°C

With its combination of power, efficiency, and versatility, the MRF373ALR5 from NXP is a superior choice for designers seeking to enhance the performance of their RF power amplification systems.
