Product Overview: MRF6P23190HR5

The MRF6P23190HR5 is a high-performance RF power transistor designed and manufactured by NXP Semiconductors. This robust device is engineered to deliver exceptional power and efficiency, making it an ideal choice for a wide range of applications, including but not limited to, base station transmitters for wireless communication, broadcast transmitters, and RF heating applications.

Key Features


• Frequency Range: The MRF6P23190HR5 operates within the range of 2,300 to 2,400 MHz, supporting various frequency bands for LTE, WiMAX, and other communication standards.

• High Output Power: With an output power of 190 W CW, this transistor is capable of delivering significant power amplification for high-power applications.

• High Gain: It boasts a high gain of 16 dB, ensuring that the signal is amplified effectively with minimal additional components required.

• High Efficiency: The device offers an outstanding efficiency of 32%, minimizing energy loss and ensuring cost-effective operation over time.

• Integrated ESD Protection: Built-in electrostatic discharge (ESD) protection enhances the durability and reliability of the device, safeguarding it against unexpected voltage spikes.

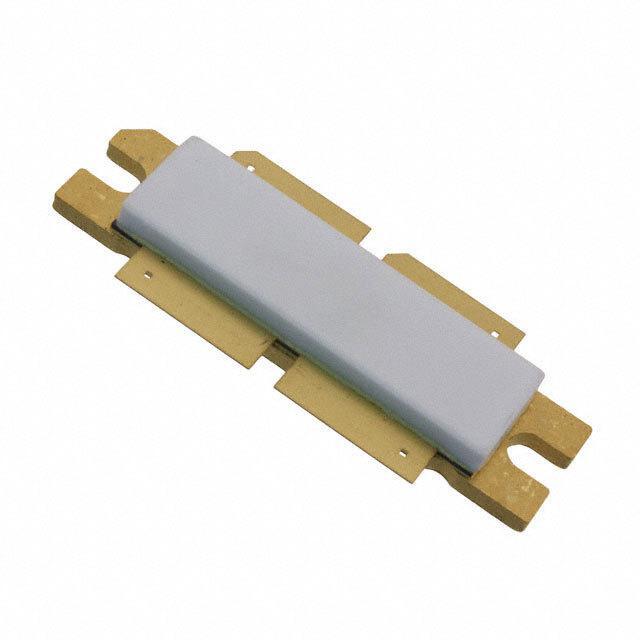

• Thermally Enhanced Package: The MRF6P23190HR5 is housed in a ceramic package that provides excellent thermal stability, allowing for consistent performance even under high-temperature conditions.


Applications

The versatility of the MRF6P23190HR5 enables its use in a variety of high-power RF applications. These include:


• Telecommunication infrastructure such as LTE and WiMAX base stations

• Professional broadcast transmitters for TV and radio

• Industrial, scientific, and medical (ISM) applications requiring RF energy


Quality and Reliability

NXP Semiconductors is known for its commitment to quality and reliability, and the MRF6P23190HR5 is no exception. It is manufactured to the highest standards, ensuring consistent performance and longevity for critical communication and industrial systems.

Conclusion

In summary, the MRF6P23190HR5 from NXP Semiconductors is a powerful and efficient solution for RF power amplification needs. With its high power, gain, and efficiency, coupled with ESD protection and a thermally efficient package, it stands out as a top choice for designers and engineers seeking a reliable RF power transistor.
