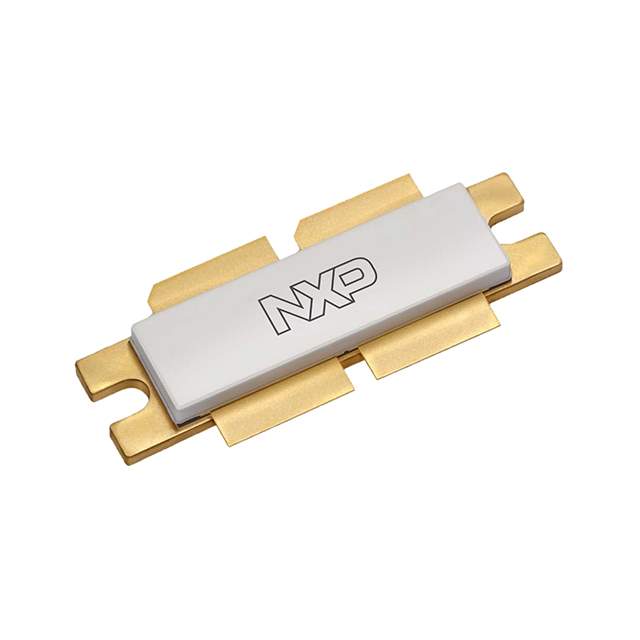

NXP MRFX1K80HR5 RF Power Transistor

The NXP MRFX1K80HR5 is a cutting-edge RF power transistor designed to deliver unparalleled performance in high-power applications. This device is part of NXP's MRFX series and is specifically engineered to meet the rigorous demands of broadcast, industrial, medical, and radio and VHF TV broadcast, aerospace, and mobile radio applications.

With its advanced LDMOS technology, the MRFX1K80HR5 offers a high output power of 1800 Watts CW over a broad frequency range of 1.8 to 400 MHz. This wide frequency range makes it incredibly versatile for various applications. The transistor operates at 65V, which enables high efficiency, and it can achieve up to 75% efficiency in industrial, scientific, and medical (ISM) applications.

The MRFX1K80HR5 also boasts excellent ruggedness. It can withstand a VSWR (Voltage Standing Wave Ratio) of 65:1 at 65V, which is a testament to its durability and reliability in even the most challenging conditions. This ruggedness, combined with its thermal performance, ensures that this transistor can deliver consistent performance over time without degradation.

Integration into designs is made easier with the MRFX1K80HR5's over-molded plastic package that provides excellent thermal stability and simplifies the assembly process. This package is designed to streamline production while maintaining high-quality standards.

The MRFX1K80HR5 is not only powerful but also designed with efficiency in mind. Its high efficiency reduces the need for complex cooling systems, thus lowering the overall system cost. Additionally, the device is characterized by its ease of use, with an integrated ESD (Electrostatic Discharge) protection mechanism that enhances its reliability.

For design engineers looking for a robust, high-performance RF power solution, the NXP MRFX1K80HR5 offers an exceptional balance of power, efficiency, and durability. Its versatility and reliability make it an ideal choice for a wide range of high-power applications.
