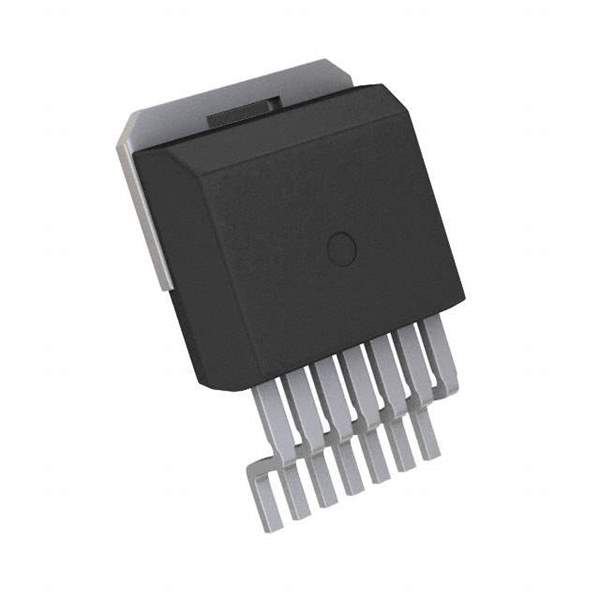

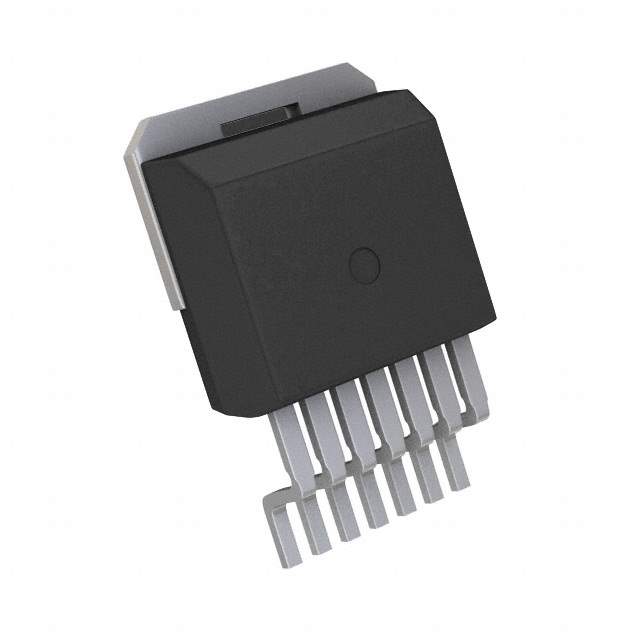

Same model may have multiple batches, images only for reference.

C3M0065100J

Name: C3M0065100J
Brand: Cree/Wolfspeed
SKU: 1325246
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	C3M0065100J
Manufacturer	Cree/Wolfspeed
Catalog	Transistors - FETs, MOSFETs - RF
Description	SICFET N-CH 1000V 35A D2PAK-7 / N-Channel 1000 V 35A (Tc) 113.5W (Tc) Surface Mount D2PAK-7
Datasheet	C3M0065100J Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer	Wolfspeed, Inc.
Packaging	Tube
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1000 V
Current - Continuous Drain (Id) @ 25°C	35A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	78mOhm @ 20A, 15V
Vgs(th) (Max) @ Id	3.5V @ 5mA
Gate Charge (Qg) (Max) @ Vgs	35 nC @ 15 V
Vgs (Max)	+15V, -4V
Input Capacitance (Ciss) (Max) @ Vds	660 pF @ 600 V
Power Dissipation (Max)	113.5W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	Surface Mount
Supplier Device Package	D2PAK-7
Case / Package	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Base Product Number	C3M0065100
RoHS Status	RoHS Compliant
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8541.29.0095
Standard Package	50
Win Source Part Number	1325246-C3M0065100J
Ultra Librarian 3D Model	Ultra Librarian C3M0065100J CAD Model

Alternative Products

Description

The Wolfspeed C3M0065100J is a discrete semiconductor product that belongs to the transistor family.

Transistor Type: N-channel SiCFET (Silicon Carbide)
Drain to Source Voltage: 1000V
Maximum Continuous Drain Current: 35A @ 25°C
Rds ON (Max) @ Id, Vgs: 78mOhm @ 20A, 15V
Gate Charge (Qg) (Max) @ Vgs: 35 nC @ 15 V
Input Capacitance (Ciss) (Max) @ Vds: 660 pF @ 600 V
Package: tube
Package Quantity: 50
