NXP NX5P2553GU6Z USB Power Switch

The NXP NX5P2553GU6Z is a precision USB power switch designed to cater to the needs of both portable and non-portable applications. This high-quality component is engineered by NXP Semiconductors, a leader in the field of advanced secure connectivity solutions.

The NX5P2553GU6Z is a current-limited power switch optimized for USB VBUS power distribution systems. It is compliant with USB 2.0 and USB 3.0 power switch requirements, making it a versatile choice for a wide range of USB applications. With its built-in fixed current-limiting and short-circuit protection, this power switch ensures the safety and reliability of connected devices.

Featuring an input voltage range of 4.5 V to 5.5 V, the NX5P2553GU6Z is capable of operating with a continuous current of up to 2.1 A, which is ideal for handling high-power USB peripherals. The device is also equipped with an over-temperature protection circuit, which prevents overheating and potential damage to the system.

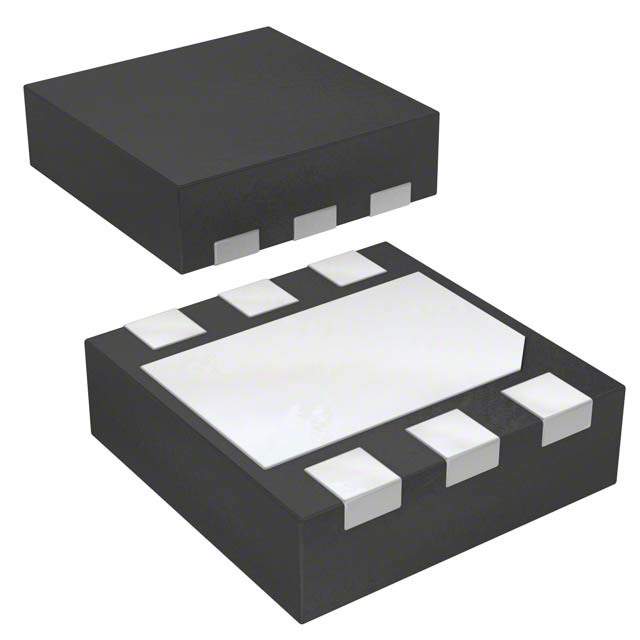

The NX5P2553GU6Z comes in an ultra-small leadless package, measuring just 1.8 mm x 1.4 mm with a 0.5 mm pitch. This compact form factor allows for space-saving designs, which is particularly beneficial in portable electronics where board space is at a premium.

Additional features of the NX5P2553GU6Z include an active-high enable input, an over-voltage lockout (OVLO) for input voltage protection, and a flag output that indicates fault conditions. These features provide designers with the flexibility and control needed to create robust, efficient USB power management systems.

In summary, the NXP NX5P2553GU6Z USB power switch is a high-performance, feature-rich solution that provides secure and efficient power distribution in USB applications. Its advanced protection features and compact size make it an excellent choice for designers looking to enhance the safety and functionality of their USB-powered devices.
