Introducing the NX5P3290UKZ Power Switch from NXP Semiconductors

The NX5P3290UKZ is a precision power switch from NXP Semiconductors, designed to cater to the needs of modern electronic devices that require efficient power management solutions. This advanced component is a perfect fit for applications that demand a high degree of protection and reliability, such as smartphones, tablets, and other portable electronic devices.

Constructed with cutting-edge technology, the NX5P3290UKZ is a high-side power switch that provides a controlled and adjustable current limit between 0.5 A and 2.0 A, making it highly versatile for various applications. It operates over an input voltage range of 2.3 V to 5.5 V, which is compatible with most low-voltage power systems in portable electronics.

One of the key features of this power switch is its over-temperature protection, which ensures the device operates within safe temperature limits, thereby protecting both the switch and the downstream components from thermal damage. In addition, the NX5P3290UKZ boasts a fast over-current response time, quickly cutting off the power in the event of a short circuit or excessive current draw to prevent damage to the system.

The device is also equipped with under-voltage lockout (UVLO), which prevents the switch from turning on when the input voltage is below a certain threshold, ensuring the system stability. The built-in output discharge function allows for rapid power-down when the switch is turned off, which is critical for preserving battery life and ensuring the safety of the device's components.

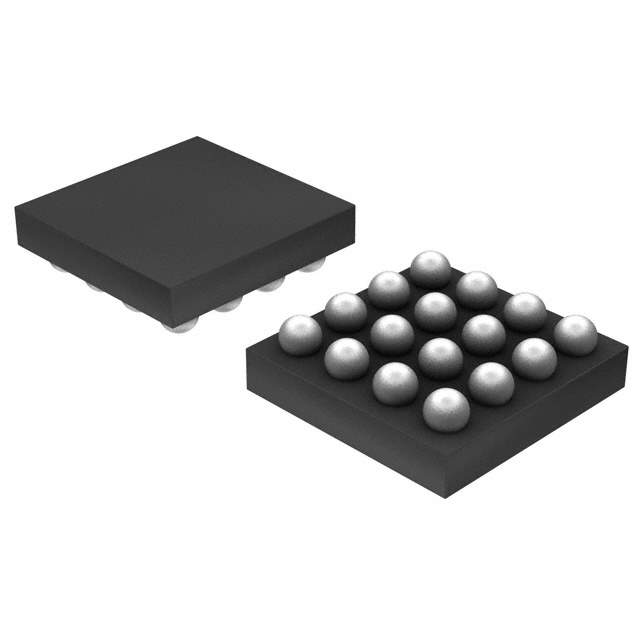

The NX5P3290UKZ comes in an ultra-compact package, specifically the space-saving WLCSP6 (Wafer Level Chip Scale Package), which is ideal for space-constrained applications. Its small footprint does not compromise its performance or functionality, making it an excellent choice for designers looking to optimize board space without sacrificing power management capabilities.

In summary, the NX5P3290UKZ from NXP Semiconductors is a robust and reliable power switch solution that offers advanced protection features, adjustable current limit, and a compact form factor, making it an essential component for the next generation of portable electronic devices.
