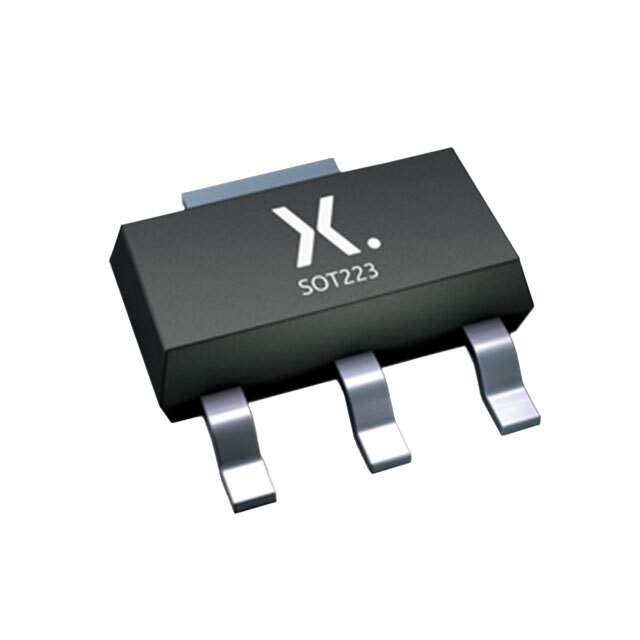

The NXP PBSS5350Z135 is a high-performance PNP bipolar transistor designed to deliver outstanding switching performance and efficiency in a compact SOT223 surface-mounted package. This transistor is a part of NXP's portfolio of low V_CESAT PNP transistors, which are specifically engineered to provide low collector-emitter saturation voltage, making them ideal for high-efficiency applications.

Key Features

• Low Collector-Emitter Saturation Voltage: The PBSS5350Z135 boasts a very low collector-emitter saturation voltage of typically 135 mV at 5 A, which reduces power loss and improves overall efficiency in circuit operation.
• High Collector Current: With a collector current capability of up to 5 A, this transistor can handle significant current loads, making it suitable for power management applications.
• High Collector-Emitter Breakdown Voltage: A high V_(BR)CEO of 50 V provides a good safety margin for voltage spikes and transients, enhancing reliability.
• High Current Gain Bandwidth Product: The device features a high f_T of 160 MHz which enables high-speed switching and is suitable for amplification at higher frequencies.

Applications

The NXP PBSS5350Z135 is versatile in its applications, including but not limited to:

• Power management in portable devices
• DC-DC converters
• Supply line switching
• Load switches
• Motor control circuits

Quality and Reliability

NXP is known for its commitment to quality, and the PBSS5350Z135 is no exception. It is produced with NXP's stringent quality control processes, ensuring high reliability and performance consistency. The device is also RoHS compliant, minimizing the environmental impact by excluding hazardous substances.

Conclusion

With its robust electrical characteristics and compact form factor, the NXP PBSS5350Z135 PNP transistor is an excellent choice for designers seeking to enhance power efficiency and reliability in their electronic designs. Its ability to switch high currents at high speeds while maintaining low power loss makes it a valuable component in a wide range of electronic applications.
