Product Overview: PCA9306GM from NXP Semiconductors

The PCA9306GM is a versatile, bidirectional voltage-level translator from NXP Semiconductors, designed for interconnecting digital circuits operating at different voltage levels. It is particularly adept at facilitating communication between devices that have non-matching voltage domains, making it an essential component in multi-voltage digital system designs.

This robust level shifter operates on a supply voltage range of 1.2V to 3.3V on the A side (Vref1) and 1.8V to 5.5V on the B side (Vref2), enabling the translation between lower voltage and higher voltage digital signals. The PCA9306GM is capable of translating two bidirectional data signals, making it suitable for applications such as I2C or SMBus where bidirectional data lines are used.

The device's design offers a solution with minimal propagation delay, adding only a negligible delay to communication lines, thus preserving the integrity and timing of the digital signals. This is especially critical in high-speed interfaces where timing is paramount. Furthermore, the PCA9306GM does not require a direction control signal, simplifying the circuit design and saving valuable GPIOs on microcontrollers.

For protection and reliability, the PCA9306GM features a high-impedance output state when disabled or when Vcc is at an unacceptable level, reducing the possibility of damaging other components in the circuit. Additionally, the device is equipped with pull-up resistors on the I/O lines, which are essential for open-drain configurations such as I2C.

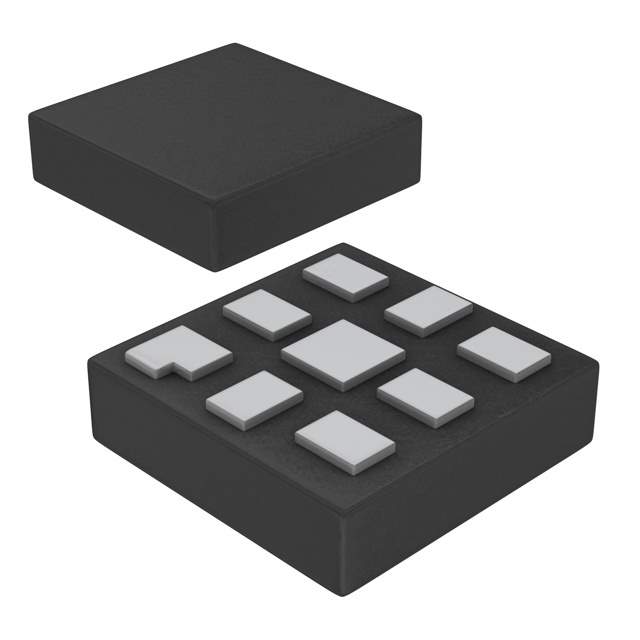

The PCA9306GM is provided in a compact, surface-mount X2SON package, making it ideal for space-constrained applications. Its small form factor is particularly beneficial for portable electronics, where space and power consumption are critical considerations.

In summary, the PCA9306GM from NXP Semiconductors is a highly reliable and efficient solution for voltage level translation in mixed-voltage digital systems. Its ease of use, coupled with its protective features and small footprint, make it an excellent choice for designers looking to bridge the gap between disparate digital voltage domains.
