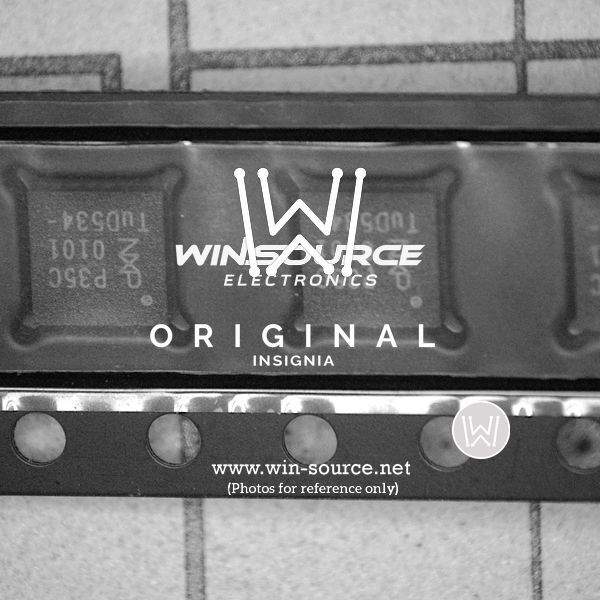

Product Overview: NXP PCA9535CHF

The NXP PCA9535CHF is a robust, low-voltage 16-bit General Purpose Input/Output (GPIO) expander with an I²C-bus/SMBus interface. This component is designed to provide additional GPIOs for microcontrollers where additional I/Os are needed. It is particularly useful in applications where pins are at a premium, and it is essential to expand the microcontroller's interface capability.

The PCA9535CHF operates at a supply voltage ranging from 2.3V to 5.5V, making it suitable for a wide array of applications and compatible with most logic levels. This versatility ensures that it can be integrated into both 3.3V and 5V systems with ease. Furthermore, its I²C-bus supports standard-mode (100 kHz), fast-mode (400 kHz), and fast-mode plus (1 MHz) which offers flexibility in terms of communication speed.

With its 16 I/O pins that can be configured as either inputs or outputs, the PCA9535CHF allows for a significant expansion of I/O capabilities. Each I/O can be controlled individually via software, and the built-in power-on reset function ensures that the I/Os are in a known state at power-up. The device also features an interrupt output which can be connected to the interrupt logic of the host microcontroller. This interrupt output is activated when any input state changes, providing a convenient method for the host to detect input changes without the need to constantly poll the GPIO expander.

The PCA9535CHF comes in a space-saving TSSOP24 package, which is ideal for applications where PCB space is a constraint. It is also equipped with an active LOW reset input, allowing the device to be reset remotely if necessary. The robust design of the PCA9535CHF ensures that it is suitable for the demanding environments of industrial and automotive applications, offering both durability and reliability.

In summary, the NXP PCA9535CHF is a feature-rich GPIO expander with a flexible I²C interface, wide voltage range, and compact package, making it an excellent choice for system designers looking to enhance their microcontroller projects with additional I/O capabilities.
