Product Overview: PCA9557PW,118

The PCA9557PW,118 is a robust I/O expander from the reputable semiconductor manufacturer, NXP Semiconductors. This integrated circuit is designed to provide additional I/O capabilities to microcontroller-based systems, particularly when the number of I/O pins on the microcontroller is limited. It is an ideal component for a wide range of applications, including servers, personal electronics, and industrial control systems.

Key Features

• Eight I/O Pins: The PCA9557PW,118 features eight programmable I/O pins that can be configured either as inputs or outputs, providing versatility for various application needs.
• I²C Bus Interface: It utilizes a two-wire I²C-bus interface, which supports standard (100 kHz), fast (400 kHz), and high-speed (3.4 MHz) modes, ensuring compatibility with a broad range of microcontrollers and easy integration into existing systems.
• Interrupt Output: An interrupt output is available to indicate a change in input status, which can help in reducing the need for continuous polling by the host microcontroller, thus saving power and processing resources.
• Power Supply Range: The device operates over a wide supply voltage range from 2.3V to 5.5V, making it suitable for both 3.3V and 5V logic levels.
• Low Standby Current: It is designed for low standby current consumption, which is crucial for battery-powered and energy-efficient applications.
• Polarity Inversion: Input port polarity can be inverted, which provides additional flexibility in interfacing with different types of sensors and inputs.

Package and Quality

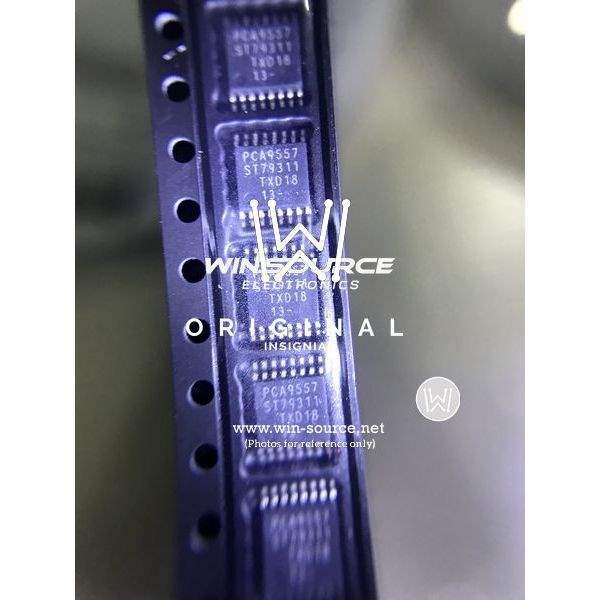

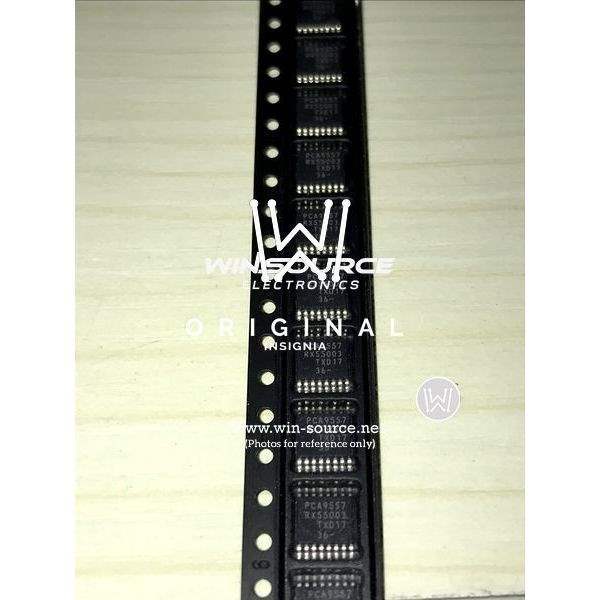

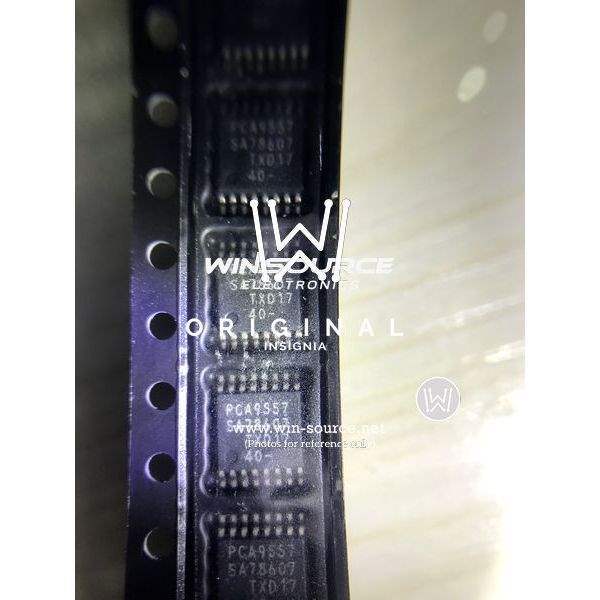

The PCA9557PW,118 comes in a TSSOP16 (thin shrink small outline package) which is compact and suitable for space-constrained applications. The package is designed for surface-mount technology, allowing for efficient assembly and manufacturing processes.

Applications

This I/O expander is widely used across various industries due to its flexibility and ease of use. It is particularly useful in applications where additional I/O ports are necessary, such as:

• Server motherboards for system management and monitoring
• Industrial control systems for extending input/output capabilities
• Consumer electronics where additional buttons or indicators are required
• Portable devices where I/O pin limitations are a challenge

Overall, the PCA9557PW,118 from NXP Semiconductors is a versatile and reliable solution for expanding I/O capabilities in a multitude of electronic applications.
