NXP PCF2129AT/2 Real-Time Clock (RTC)

The NXP PCF2129AT/2 is a high-accuracy, ultra-low power Real-Time Clock (RTC) with an integrated Temperature-Compensated Crystal Oscillator (TCXO) and a quartz crystal. This RTC is designed for a broad range of applications that require precise timekeeping, long battery life, and minimal power consumption. It is an ideal choice for industrial and consumer applications such as smart meters, home automation, wearable devices, and IoT endpoints.

The device offers a multitude of features that make it a versatile and reliable timekeeping solution. It provides a clock frequency accuracy of ±3 ppm at room temperature, which translates to a time deviation of less than 2 minutes per year. This level of precision is achieved through the onboard TCXO, which compensates for the temperature-induced frequency drift of the crystal oscillator.

One of the key benefits of the PCF2129AT/2 is its low power consumption. With a typical current consumption of only 450 nA at V_DD = 3.0 V and T_amb = 25°C, it is optimized for battery-operated devices. This ensures that the RTC can maintain accurate timekeeping for extended periods, even when the main system power is turned off.

The RTC provides a full binary-coded decimal (BCD) clock/calendar function and includes features such as a programmable alarm and timer functions that can generate interrupts for wake-up calls to a microcontroller. Additionally, the PCF2129AT/2 includes an I²C-bus interface for easy integration into most microcontroller-based systems.

For data integrity, the device includes an integrated battery switchover circuit that detects power failures and automatically switches to the backup battery supply, ensuring uninterrupted timekeeping. The PCF2129AT/2 is also equipped with aging offset registers that can be used to digitally tune the clock frequency, compensating for crystal aging effects.

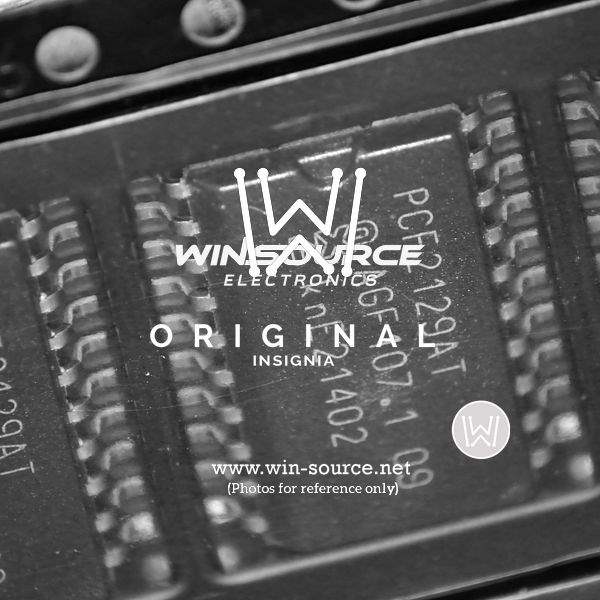

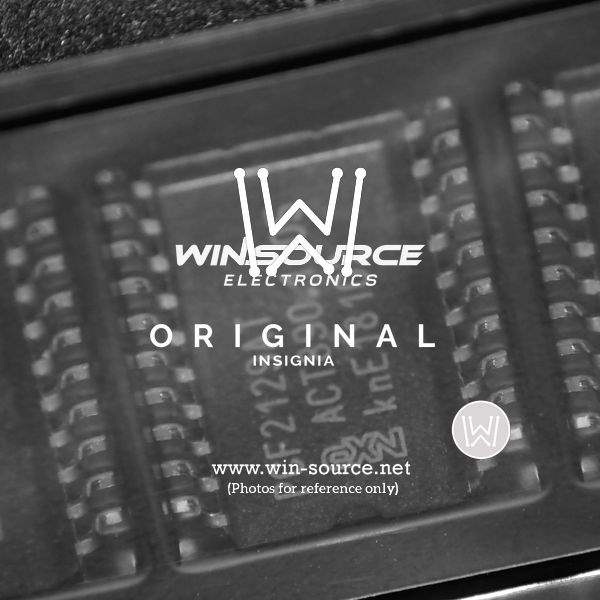

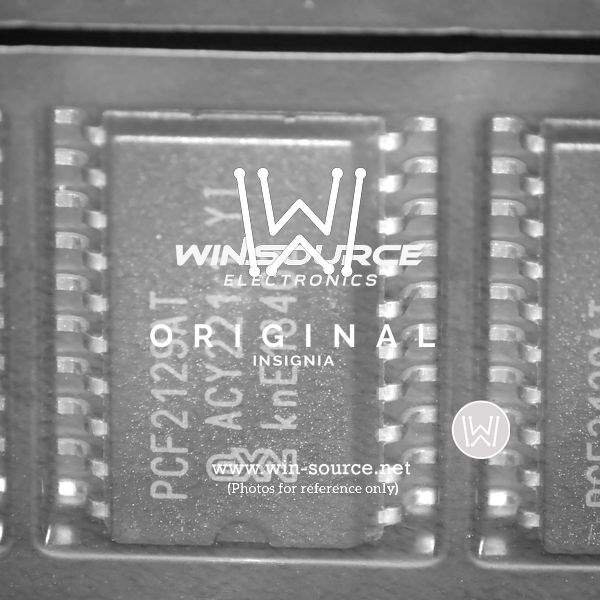

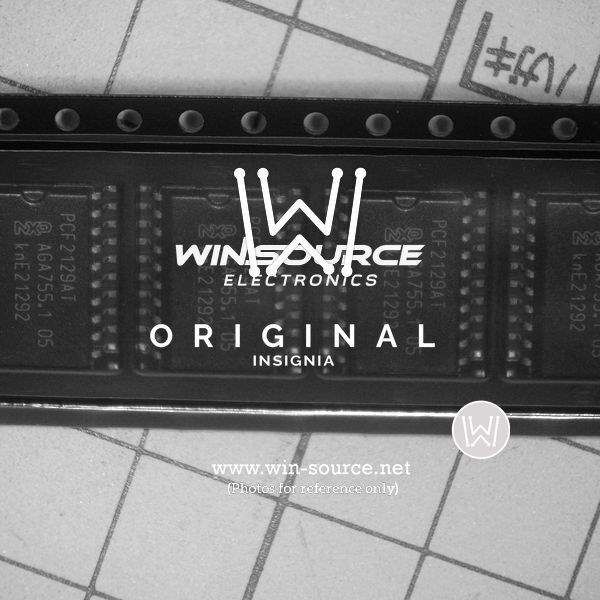

This RTC module comes in a compact SO16 package, making it suitable for space-constrained applications. With its robust feature set and high accuracy, the NXP PCF2129AT/2 stands out as a leading choice for any application where reliable timekeeping is paramount.
