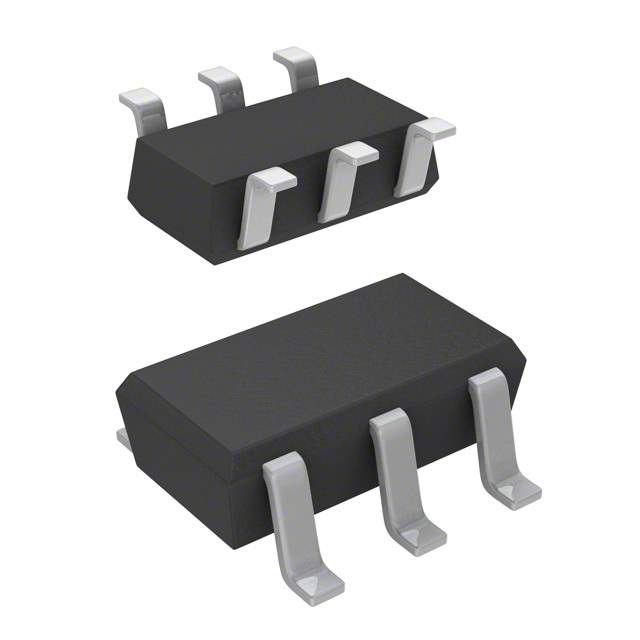

NXP PCT2075GV/P110X Temperature Sensor

The NXP PCT2075GV/P110X is a high-precision temperature sensor that offers an ideal solution for a wide range of applications requiring accurate temperature monitoring. This digital sensor is part of NXP's renowned portfolio of temperature sensing devices, known for their reliability, accuracy, and ease of integration.

The PCT2075GV/P110X operates over a wide temperature range, typically from -55°C to +125°C, providing the flexibility needed for diverse environmental conditions. Its high accuracy of ±1°C between -25°C and +100°C, and ±2°C in the extremes of its operating range, ensures precise temperature readings critical for system performance and safety.

Key Features

• Digital Interface: The sensor employs an I²C-bus interface, supporting standard, fast, and high-speed modes to facilitate easy communication with microcontrollers and other digital systems.
• Programmable Resolution: It offers a programmable resolution from 9 to 12 bits, allowing designers to optimize the trade-off between resolution and measurement speed based on specific application requirements.
• Low Power Consumption: Designed for energy efficiency, the PCT2075GV/P110X has a low operating current, making it suitable for battery-powered and energy-sensitive applications.
• Thermal Watchdog Function: The sensor includes a programmable temperature threshold and hysteresis set points, which can be used to implement a thermal watchdog function, providing an additional layer of system protection.
• Shutdown Mode: An integrated shutdown mode significantly reduces power consumption when the sensor is not in active use.

Applications

The versatility of the PCT2075GV/P110X temperature sensor makes it an excellent choice for a variety of applications, including:

• System thermal management in computers and servers
• Industrial control systems
• Environmental monitoring
• Consumer electronics
• Smart home devices and IoT

Overall, the NXP PCT2075GV/P110X temperature sensor is a robust and reliable component that offers designers a high degree of flexibility and performance for their temperature monitoring needs. Its small form factor and advanced features make it a go-to choice for engineers looking to add precise thermal management capabilities to their designs.
