Introducing the PESD5V0S1ULD ESD Protection Diode from NXP Semiconductors

The PESD5V0S1ULD is a state-of-the-art ESD protection diode designed and manufactured by NXP Semiconductors, a leader in the electronics industry. This robust device is specifically engineered to protect sensitive electronic components from electrostatic discharge (ESD) events, which can cause irreversible damage to electronic circuits.

Featuring ultra-low capacitance and a working voltage of 5V, the PESD5V0S1ULD is an ideal solution for safeguarding high-speed data lines such as USB 2.0, HDMI, and other signal lines that require minimal signal distortion. The device's low clamping voltage ensures that any ESD strikes are effectively suppressed, protecting the delicate circuits downstream.

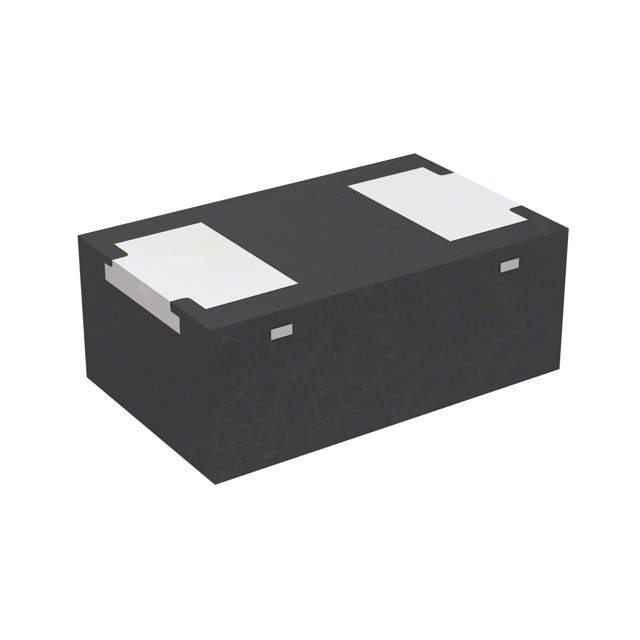

The PESD5V0S1ULD comes in an ultra-small, leadless DFN1006-2 (SOD882) package that measures just 1.0 x 0.6mm. This compact footprint allows for easy integration into space-constrained applications, making it perfect for modern portable electronics such as smartphones, tablets, and laptops. Despite its small size, this ESD diode does not compromise on performance, offering a high level of protection that meets the stringent requirements of the IEC 61000-4-2 standard.

Key features of the PESD5V0S1ULD include:

• Ultra-low capacitance of just 0.25 pF, minimizing signal attenuation for high-speed interfaces.
• ESD protection up to 30 kV (air and contact discharge) as per IEC 61000-4-2 standard.
• Very low leakage current, ensuring minimal power consumption when the device is in standby mode.
• Robust surge protection with a peak pulse power of 200 W (8/20 µs surge waveform).
• Halogen-free and RoHS compliant, making it an environmentally friendly choice for modern electronics.

With its combination of high-performance ESD protection, low capacitance, and small package size, the PESD5V0S1ULD from NXP Semiconductors is an excellent choice for designers looking to enhance the durability and reliability of their electronic products. Whether it's for personal electronics, telecommunications, or computing devices, the PESD5V0S1ULD offers superior protection against the common threat of electrostatic discharge without compromising signal integrity or design space.
