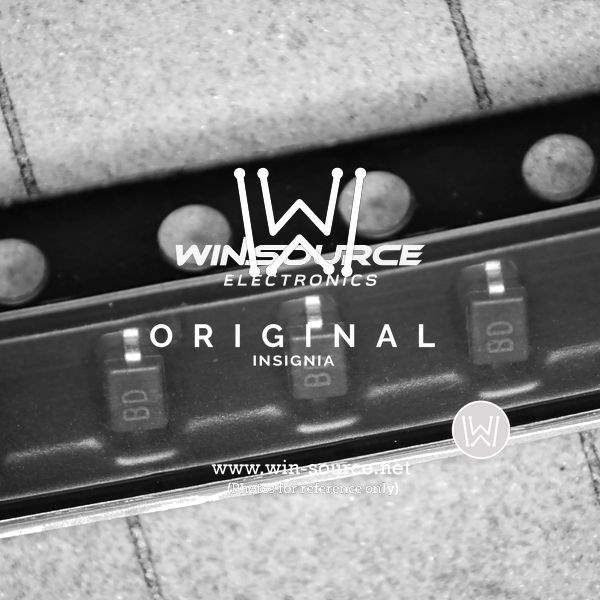

NXP PMEG4010ER Schottky Diode

The NXP PMEG4010ER is a robust and highly efficient Schottky barrier rectifier designed for a wide range of applications that require low forward voltage drop and high surge current capability. This diode is a perfect choice for high-efficiency power management tasks, where it can be used in switch-mode power supplies, reverse polarity protection circuits, and power management functions in portable and consumer electronics.

Key Features

• Low Forward Voltage: The PMEG4010ER features a low forward voltage drop, typically just 0.37V at 1A, which helps to minimize power losses and improve overall efficiency in power conversion circuits.
• High Surge Current Capability: With an impressive non-repetitive surge peak forward current of 40A, this diode can handle high surge current events, making it an excellent choice for applications that may experience short-term overload conditions.
• Energy Efficiency: Its low power loss and high efficiency are ideal for reducing heat generation, thereby enhancing the reliability and lifespan of the device it is used in.
• Small Form Factor: The PMEG4010ER comes in a compact SOD123W surface-mounted package, which is suitable for automated assembly processes and helps in designing space-constrained applications.
• Lead-Free and RoHS Compliant: This product is environmentally friendly, complying with the Restriction of Hazardous Substances (RoHS) directive, making it suitable for use in green products.

Applications

• DC/DC Converters
• Power Management Systems
• Automotive Applications
• Portable Devices and Chargers
• LED Lighting

With its combination of high efficiency, reliability, and compact size, the NXP PMEG4010ER Schottky diode is an excellent choice for designers looking to improve the performance of their power management systems. Whether it's used in consumer electronics, automotive modules, or industrial power supplies, this diode provides the performance and durability needed for demanding applications.
