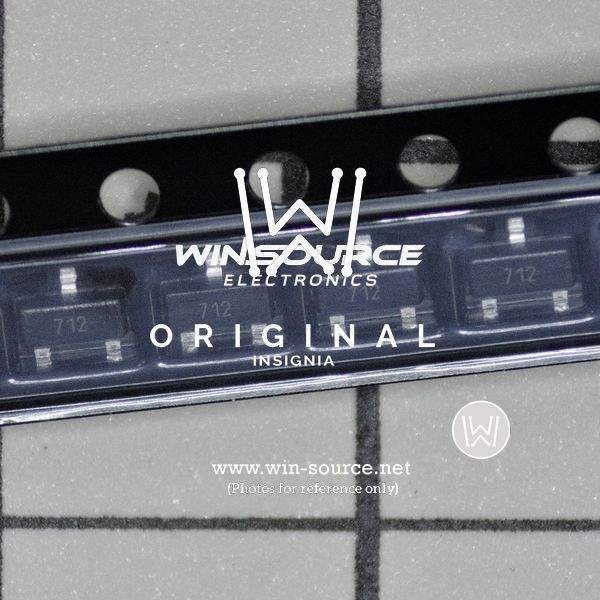

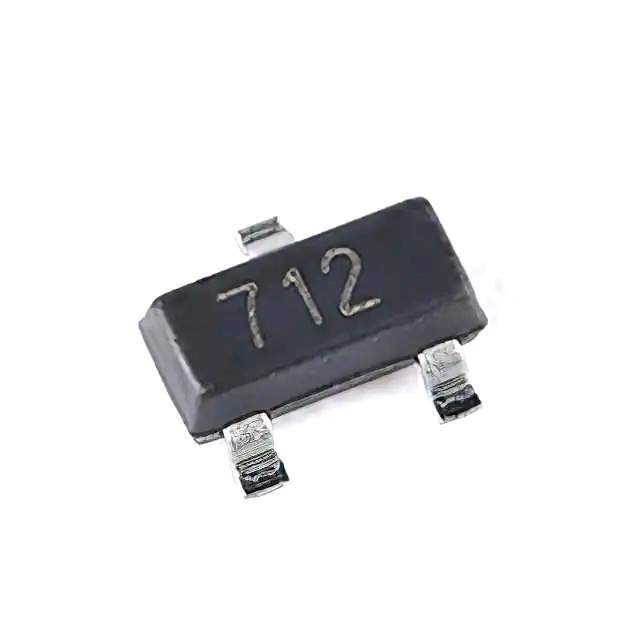

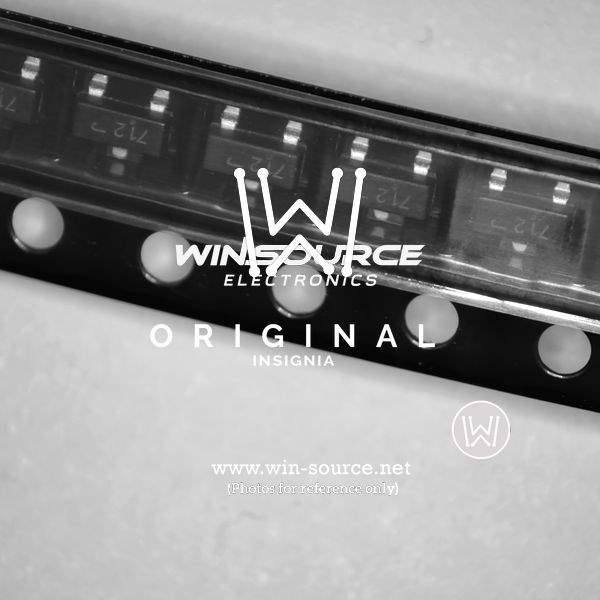

The PSM712-LF-T7 from NXP Semiconductors is a state-of-the-art ESD protection device engineered to safeguard high-speed data lines and other sensitive circuits from electrostatic discharge (ESD) threats. This product is an essential component for designers looking to enhance the durability and reliability of their electronic applications.

Key Features

• High ESD Protection: With its capability to withstand ESD discharges up to ±30 kV, the PSM712-LF-T7 provides exceptional protection against ESD, exceeding the IEC 61000-4-2 standard (Level 4).
• Low Capacitance: The device features ultra-low line capacitance of typically 0.7 pF, making it ideal for protecting high-speed data lines without significantly affecting signal integrity.
• Bi-directional Protection: It offers bi-directional ESD protection for one data line or uni-directional protection for two lines, enhancing its versatility in various circuit configurations.
• Small Form Factor: Encased in a tiny leadless DFN1006-2 (SOD882) package, the PSM712-LF-T7 is perfect for space-constrained applications where PCB real estate is at a premium.

Applications

The PSM712-LF-T7 is suitable for a wide range of applications that require robust ESD protection. Some of these include:

• Mobile and Portable Devices
• Computer Peripherals
• Communication Systems
• Digital Cameras
• MP3 Players
• Personal Media Players

Quality and Reliability

NXP Semiconductors is committed to delivering high-quality and reliable components. The PSM712-LF-T7 is no exception, with its design and manufacturing processes geared towards ensuring long-term performance even in the most challenging environments.

Environmental Compliance

Consistent with NXP's dedication to environmental responsibility, the PSM712-LF-T7 complies with various environmental standards, including RoHS and Halogen-Free requirements, ensuring a reduced ecological footprint of electronic products.
