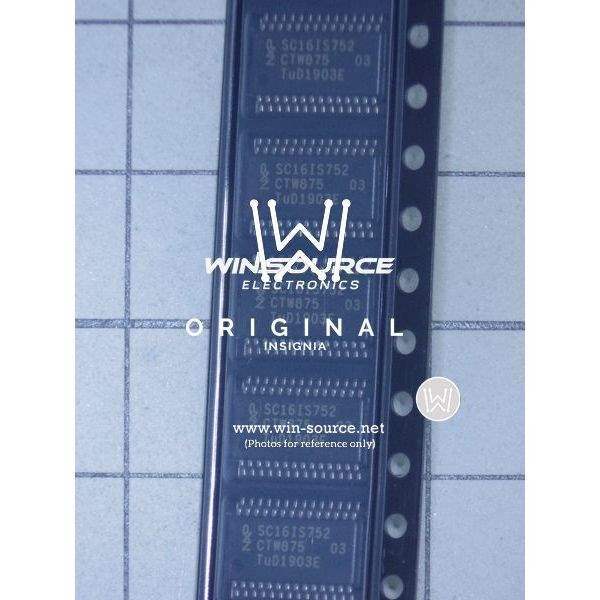

Overview of NXP SC16IS752IPW,128 Dual UART IC

The SC16IS752IPW,128 is a powerful integrated circuit from NXP Semiconductors designed to facilitate seamless serial communication in a variety of embedded systems. This dual-channel UART (Universal Asynchronous Receiver/Transmitter) chip serves as an interface between a microcontroller and serial communication ports, providing enhanced connectivity options with its additional features and capabilities.

Key Features

• Dual UART Channels: The device contains two independent UART channels, allowing for simultaneous communication on two separate serial ports.
• I2C or SPI Interface: It supports both I2C and SPI interfaces, enabling easy integration with most microcontrollers and allowing for flexible design options.
• FIFO Buffers: Each UART channel is equipped with 64-byte FIFO (First In, First Out) buffers for both transmit and receive operations, which help to reduce the load on the host processor and improve system efficiency.
• Programmable Baud Rate: The SC16IS752IPW,128 offers a fully programmable baud rate generator, capable of supporting a wide range of baud rates for diverse application requirements.
• Modem Interface: The chip includes a full modem interface, with hardware flow control and modem handshake signals, providing additional functionality for modem communication.
• IrDA SIR: It comes with a built-in support for IrDA SIR (Serial Infrared) communication, expanding its usability in infrared-based communication systems.
• Low Power Consumption: Designed with power efficiency in mind, the device operates with a low current consumption, making it suitable for battery-powered and portable applications.
• Industrial Temperature Range: The SC16IS752IPW,128 is operational over an industrial temperature range, ensuring reliability and performance under varying environmental conditions.

Applications

The versatility of the SC16IS752IPW,128 makes it an ideal choice for a wide range of applications, including but not limited to industrial control, point-of-sale systems, automotive diagnostics, and networking. Its ability to handle high-speed serial data and support for multiple communication protocols makes it a robust choice for designers looking to enhance the serial communication capabilities of their systems.

With its advanced features and reliable performance, the NXP SC16IS752IPW,128 is a standout component for any project requiring efficient and flexible serial data communication.
