The SP3485EEN from NXP Semiconductors is a high-performance, low-power transceiver for RS-485 and RS-422 communication. This device is part of NXP's broad range of interface products designed to provide robust communication in industrial environments.

Key Features

• Electrical Characteristics: The SP3485EEN operates from a single +3.3V power supply and is fully compliant with the EIA/TIA-485 standard.
• High-Speed Operation: Capable of operating at speeds up to 10Mbps, this transceiver is suitable for high-speed data communication in complex systems.
• Low Power Consumption: With a low-operating current of 300µA and a 1µA low-current shutdown mode, it is designed for power-sensitive applications.
• Enhanced Safety: It features thermal shutdown protection and current limiting to ensure the device and your system are protected from excessive power dissipation.
• Fail-Safe Receiver: The receiver inputs have a fail-safe feature that guarantees a known output state if the inputs are open, shorted, or idle.
• Extended Temperature Range: The device is operational over the industrial temperature range of -40°C to +85°C, making it suitable for harsh environmental conditions.

Applications

The SP3485EEN is an ideal choice for an array of applications that require robust and reliable data transmission. These include:

• Industrial control systems
• Building automation
• Networked security cameras
• Point of Sale (POS) terminals
• Data communication systems with high data rates

Package and Quality

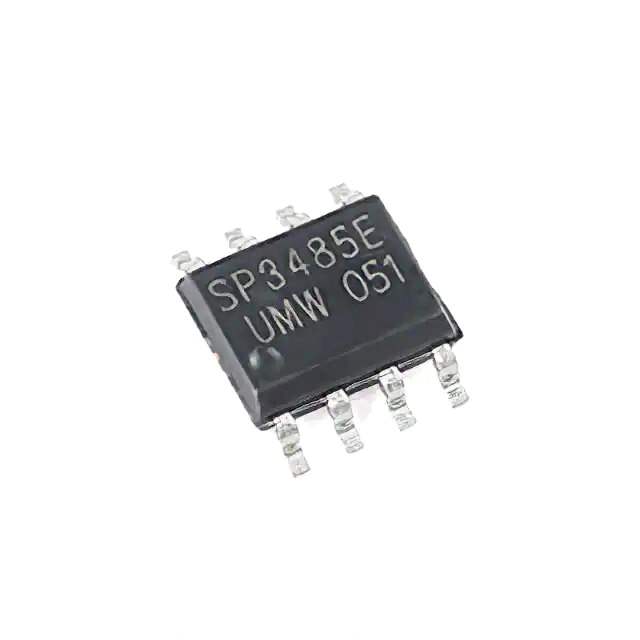

The SP3485EEN is offered in a narrow 8-pin SOIC package, which is suitable for space-constrained applications. NXP's commitment to quality ensures that this transceiver meets the stringent requirements of industrial applications, providing reliable operation and a long service life.

Conclusion

The NXP SP3485EEN transceiver is a top-of-the-line solution for any designer looking to implement RS-485/RS-422 communication in their system. Its combination of high-speed operation, low power consumption, and robust safety features make it a smart choice for a wide range of industrial and commercial applications.
