The SPC5566MZP132R is a cutting-edge microcontroller unit (MCU) from NXP Semiconductors, renowned for its high-performance capabilities and robust feature set. Designed to meet the rigorous demands of automotive and industrial applications, this MCU is part of the MPC55xx/SPC56x family, which is built upon the Power Architecture® technology. The SPC5566MZP132R is particularly suited for advanced automotive applications, including engine management, transmission control, chassis, and safety systems.

Key Features

• Core: The microcontroller features a 32-bit Power Architecture® e200z6 core, which operates at a frequency of up to 120 MHz, delivering the computing power necessary for complex real-time processing tasks.
• Memory: It comes equipped with 1 MB of flash memory and 64 KB of RAM, ensuring ample space for application code and data storage.
• Advanced Timers: The device includes a rich set of timing and control functions with multiple Motor Control and General Purpose Timer units.
• Communication Interfaces: A variety of communication interfaces are provided, including CAN, LIN, and FlexRay modules, which allow for versatile connectivity options within automotive networks.
• Analog-to-Digital Converters: The MCU has multiple 12-bit ADCs, providing accurate analog signal measurement and conversion capabilities.
• Enhanced Safety Features: Safety features include a Memory Protection Unit (MPU), Error Correction Code (ECC) on the flash and RAM, and a built-in self-test for detecting potential faults, ensuring high reliability and compliance with stringent automotive safety standards.

Applications

The SPC5566MZP132R is designed for a wide range of automotive applications that require high-speed processing, real-time control, and reliable operation in harsh environments. Its robust feature set makes it ideal for:

• Engine Control Units (ECU)
• Transmission Control Modules
• Brake and Stability Control Systems
• Electric Power Steering Systems
• Advanced Driver Assistance Systems (ADAS)

Package and Quality

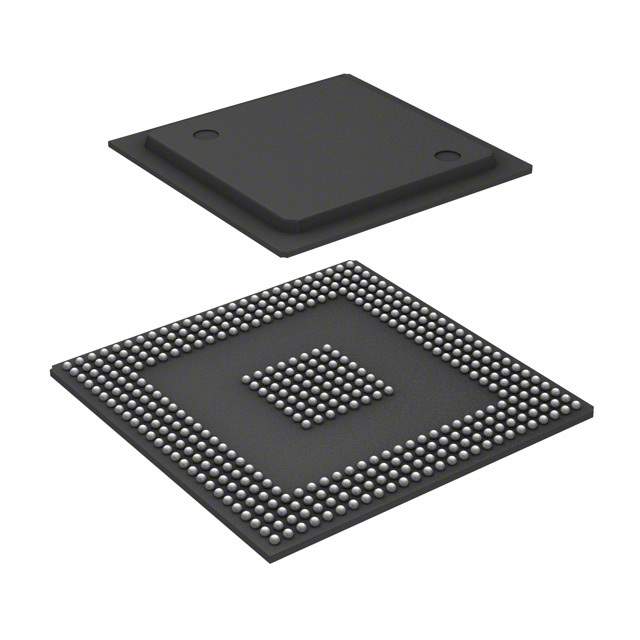

The SPC5566MZP132R is offered in a 176-pin MAPBGA package, providing a compact footprint for space-constrained applications. NXP's commitment to quality ensures that this MCU meets the highest standards for automotive-grade components, including AEC-Q100 certification.
