The NXP SPC5744BK1AVMH2R is a cutting-edge microcontroller that is part of the Power Architecture family, designed for the automotive industry. This powerful MCU is specifically engineered to meet the rigorous demands of automotive applications, providing a high level of performance, safety, and reliability. With its advanced features and robust design, the SPC5744BK1AVMH2R is an ideal choice for a wide range of automotive systems, including engine management, transmission control, and advanced driver assistance systems (ADAS).

Key Features:

• CPU: The microcontroller is equipped with a dual-core Power Architecture e200z4d CPU, each core running at up to 160 MHz, offering exceptional processing capabilities for complex automotive applications.
• Memory: It comes with 1.5MB of integrated flash memory and 256KB of RAM, providing ample space for program storage and efficient data handling.
• Advanced Timers: The device includes a rich set of timers and counters, including motor control timers, periodic interrupt timers, and watchdog timers, facilitating precise timing and control for various automotive functions.
• Communication Interfaces: A comprehensive array of communication interfaces is available, such as multiple CAN interfaces, LIN, SPI, and FlexRay, ensuring versatile connectivity options for in-vehicle networking.
• Safety Features: The MCU is designed with safety-critical systems in mind, featuring fault collection and control unit, built-in self-test for RAM, and a memory protection unit, supporting the development of safety-compliant automotive applications according to ISO 26262 standards.
• Temperature Range: It operates over a wide temperature range from -40°C to +125°C, suitable for the harsh environments encountered in automotive settings.

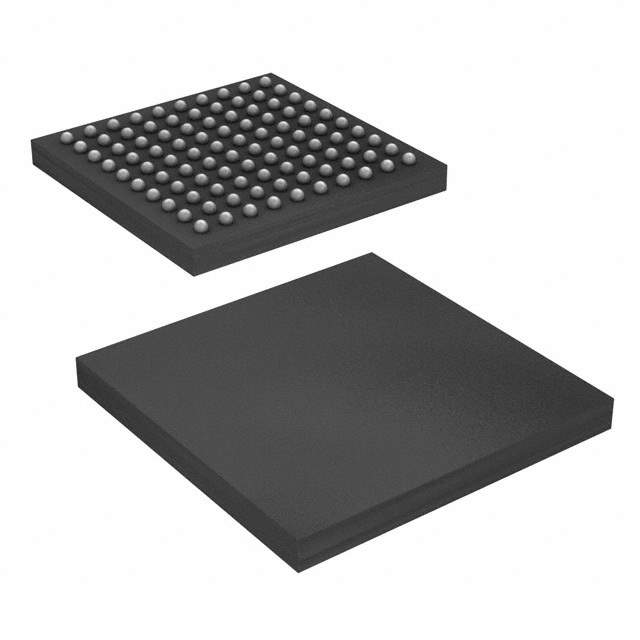

• Package: The SPC5744BK1AVMH2R is available in a 176-pin MAPBGA package, which is designed for efficient space utilization and thermal performance on printed circuit boards.

Applications:

The versatility and high performance of the NXP SPC5744BK1AVMH2R make it an excellent choice for a multitude of automotive applications, such as:

• Body Control Modules
• Engine Control Units
• Transmission Control Modules
• Electric Power Steering Systems
• ADAS and Safety Systems
• Hybrid and Electric Vehicle Control Units

With its robust feature set and compliance with automotive industry standards, the NXP SPC5744BK1AVMH2R microcontroller is a powerful and reliable solution for next-generation automotive designs.
