Same model may have multiple batches, images only for reference.

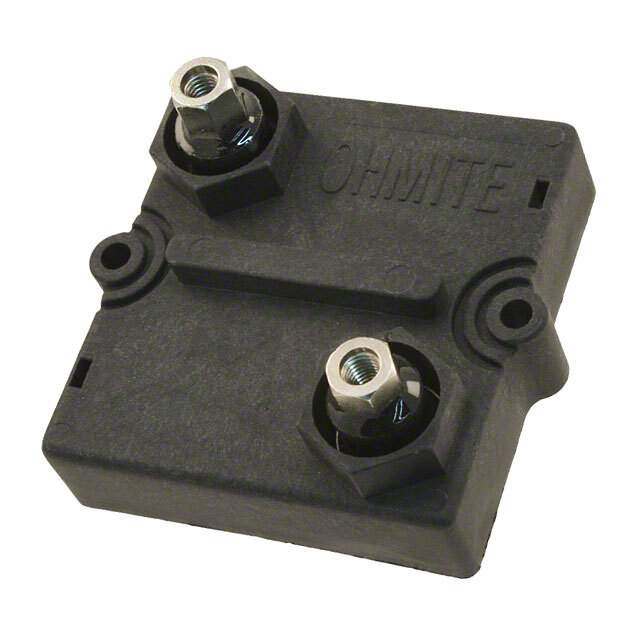

TAP800KR25E Real Image
Same model may have multiple batches, images only for reference.

TAP800KR25E

Part No TAP800KR25E
Manufacturer Ohmite
Catalog Chassis Mount Resistors
Description RES CHAS MNT 0.25 OHM 10% 800W / Res Thick Film 0.25 Ohm 10% 800W ±150ppm/°C Epoxy Screw Terminal Flange Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Ohmite
Series TAP800
Packaging Bulk
Resistance (Ohms) 0.25
Tolerance ±10%
Power (Watts) 800W
Composition Thick Film
Temperature Coefficient ±150ppm/°C
Operating Temperature Range -55°C ~ 150°C
Coating, Housing Type Epoxy Coated
Mounting Feature Flanges
Dimension 2.559" L x 2.362" W (65.00mm x 60.00mm)
Height - Seated (Maximum) 1.280" (32.50mm)
Lead Style M5 Threaded
Package Box
Win Source Part Number 796300-TAP800KR25E
Popularity Medium
Supply and Demand Status Limited
Family Name TAP800
Introduction Date July 15, 2007
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TAP800KR25E CAD Model

Description

The Ohmite TAP800KR25E is a thick film resistor manufactured by Ohmite.

  • Power Rating: 800W
  • Resistance: 0.25 ohms
  • Tolerance: ±10%
  • Series: TAP800
  • Coating: Epoxy
  • Mounting: Flanges
  • Lead Style: M5 threaded
  • Package: Bulk
  • Dimension: 2.559" L x 2.362" W (65.00mm x 60.00mm)
  • Height Seated: 1.280" (32.50mm)
  • Operating Temperature: -55°C to 150°C
  • Introduced: July 15, 2007
  • EOL Date: 2028 (estimated)
  • Supply and Demand: Limited
