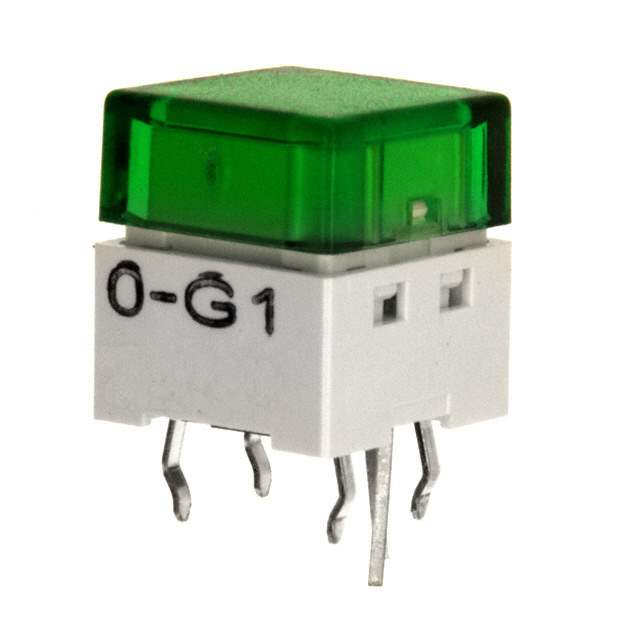

B3W-9000-G1G Real Image
Same model may have multiple batches, images only for reference.

B3W-9000-G1G

Part No B3W-9000-G1G
Manufacturer Omron
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V  /  Tactile Switch SPST-NO Top Actuated Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr Omron Electronics Inc-EMC Div
Series B3W-9
Package Tray
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Square Button
Mounting Type Through Hole
Actuator Height off PCB, Vertical 10.20mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 10.00mm x 10.00mm
Illumination Illuminated
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 2.1 VDC
Operating Force 160gf
Features Sealed - Fully
Temperature Range - Operating -25°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 1,000,000 Cycles
Base Product Number B3W
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9031
Other Names B3W-9000-G1G-ND,SW1035,2266-B3W-9000-G1G,B3W9000G1G
Standard Package 300
Win Source Part Number 1145898-B3W-9000-G1G
Ultra Librarian 3D Model Ultra Librarian B3W-9000-G1G CAD Model

Description

The Omron Electronics Inc-EMC Div B3W-9 Series Tactile Switches are a high-quality switch solution for your circuit needs.

  • Termination Style: PC Pin
  • Sealed: Yes
  • Packaging: Tray
  • Standard Package: 300
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Square Button
  • Switch Travel: 0.25mm
  • Contact Rating (Voltage): 0.05A @ 24VDC
  • Actuation: Top
  • Outline: 10.00mm x 10.00mm
  • Illumination: Green LED
  • Illumination Voltage: 2.1 VDC
  • Operating Force: 160gf
  • Mechanical Life: 1,000,000 cycles
  • Mounting Type: Through Hole
  • Temperature Range: -25°C to 70°C
