Same model may have multiple batches, images only for reference.

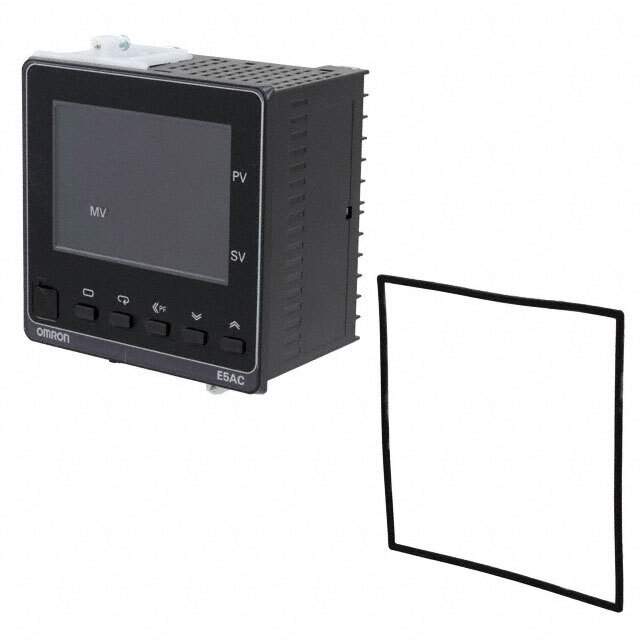

E5AC-CQ4D5M-011 Real Image
Same model may have multiple batches, images only for reference.

E5AC-CQ4D5M-011

Part No E5AC-CQ4D5M-011
Manufacturer Omron
Catalog Controllers - Process, Temperature
Description CONTROL TEMP/PROC 24V PANEL MT / Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) 24VAC/DC Panel Mount
Datasheet
E5AC-CQ4D5M-011 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls - Controllers - Process, Temperature
Mfr Omron Automation and Safety
Series E5AC
Package Bulk
Type Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)
Input Range -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Output Type Analog, Relay (4) , Voltage (External SSR)
Control Method On/Off, Proportional (PID)
Number Of Characters Per Row 4, 4, 4
Display Type LCD - Tri Color Characters, Backlight
Display Characters - Height 0.984" (25.00mm) , 0.590" (15.00mm) , 0.374" (9.50mm)
Voltage - Supply 24VAC/DC
Panel Cutout Dimensions Square - 92.00mm x 92.00mm
Mounting Type Panel Mount
Termination Style Screw Terminal
Ingress Protection IP66 - Dust Tight, Water Resistant
Features Event Input, Heater Fault Detection
Temperature Range - Operating -10°C ~ 55°C
Weight 0.551 lb (249.93 g)
Base Product Number E5AC-CQ
Standard Package 1
RoHS Status Not applicable
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8537.10.9160
Win Source Part Number 1351805-E5AC-CQ4D5M-011
Ultra Librarian 3D Model Ultra Librarian E5AC-CQ4D5M-011 CAD Model

Description

The Omron E5AC-CQ4D5M-011 is a process and temperature controller that is part of the E5AC series.

  • Panel Cutout Dimensions: 92.00mm x 92.00mm
  • Ingress Protection: IP66
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8537.10.9160
  • Base Product Number: E5AC-CQ
  • RoHS Status: Not Applicable
