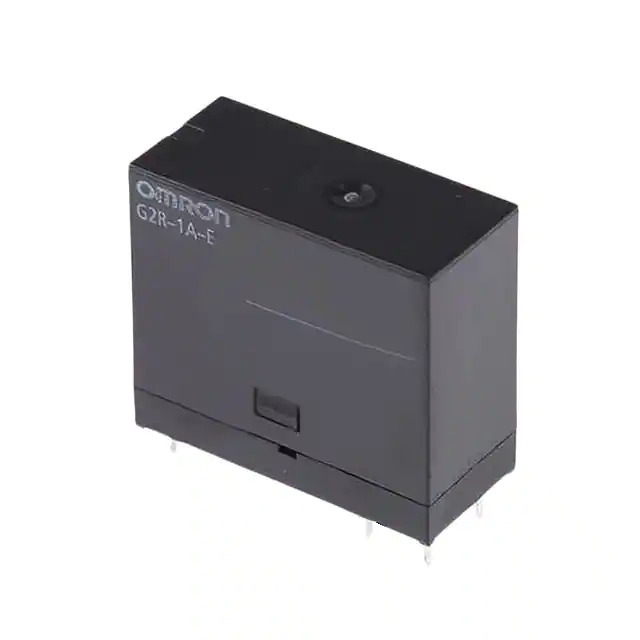

G2R-1A-E-DC24 Omron
Same model may have multiple batches, images only for reference.

G2R-1A-E-DC24

Part No G2R-1A-E-DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Datasheet
G2R-1A-E-DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G2R
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 380VAC, 125VDC - Max
Coil Current 21.8 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation -
Must Operate Voltage 16.8 VDC
Must Release Voltage 3.6 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 1.1 kOhms
Base Product Number G2R
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373411-G2R-1A-E-DC24
Ultra Librarian 3D Model Ultra Librarian G2R-1A-E-DC24 CAD Model

Description

The Omron G2R-1A-E-DC24 is a power relay designed for a wide range of applications.

  • Coil Voltage: 24VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 16A
  • Switching Voltage: 380VAC, 125VDC
  • Protection: Sealed, Flux Protection
  • Mounting Type: Through Hole
  • Operate Time: 15ms
  • Release Time: 5ms
  • Series: G2R
