Same model may have multiple batches, images only for reference.

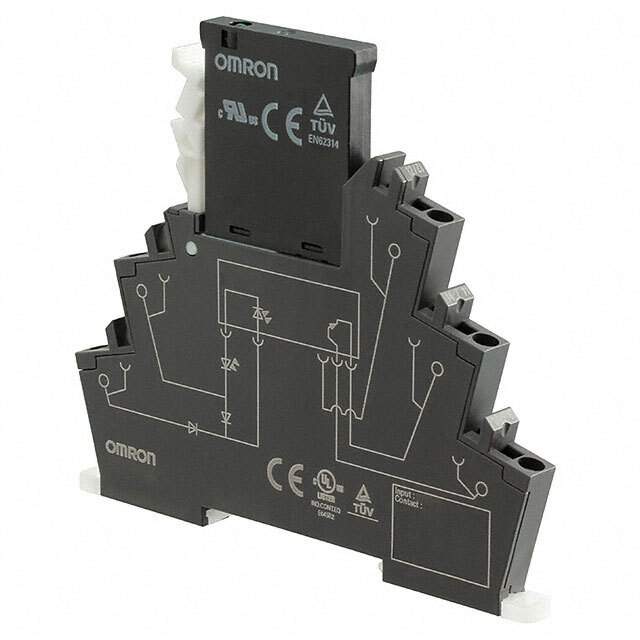

G3RV-SR500-D AC100 Real Image
Same model may have multiple batches, images only for reference.

G3RV-SR500-D AC100

Part No G3RV-SR500-D AC100
Manufacturer Omron
Catalog Solid State Relays
Description SSR RELAY SPST-NO 3A 5-24V / Solid State SPST-NO (1 Form A) Module
Datasheet
G3RV-SR500-D AC100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Omron Automation and Safety
Series G3RV-SR
Package Bulk
Mounting Type DIN Rail
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 100VAC
Voltage - Load 5 V ~ 24 V
Load Current 3 A
On-State Resistance (Max) 300 mOhms
Termination Style Spring Terminal
Package / Case Module
Base Product Number G3RV-SR
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.49.0055
Other Names G3RV-SR500-D AC100-ND,G3RV-SR500-DAC100
Standard Package 1
Win Source Part Number 1016734-G3RV-SR500-D AC100
Ultra Librarian 3D Model Ultra Librarian G3RV-SR500-D AC100 CAD Model

Description

The G3RV-SR500-D AC100 solid state relay is manufactured by Omron Automation and Safety.

  • Voltage Input: 100VAC
  • Output Type: DC
  • Circuit: SPST-NO (1 Form A)
  • On-State Resistance (max): 300 mOhms
  • Load Current: 3 A
  • Voltage Load: 5 V ~ 24 V
  • Package: module
  • Termination Style: spring terminal
  • Mounting: DIN rail
  • Category: Relays>Solid State Relays
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.49.0055
