Same model may have multiple batches, images only for reference.

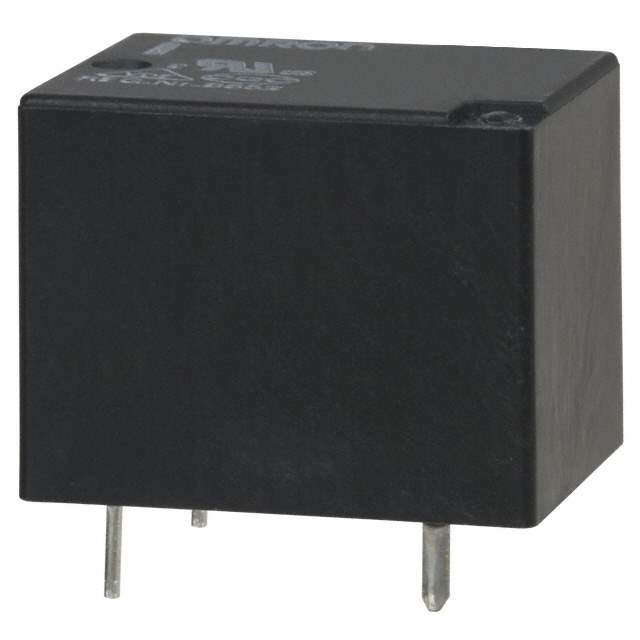

G5LA-1A4 DC12 Real Image
Same model may have multiple batches, images only for reference.

G5LA-1A4 DC12

Part No G5LA-1A4 DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Datasheet
G5LA-1A4 DC12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5LA
Package Tray
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 24VDC - Max
Coil Current 30 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class A
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 400 Ohms
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0050
Other Names G5LA-1A4-DC12,G5LA1A412DC,G5LA1A4DC12,G5LA6005A,Z2571
Standard Package 100
Win Source Part Number 1032231-G5LA-1A4 DC12
Ultra Librarian 3D Model Ultra Librarian G5LA-1A4 DC12 CAD Model

Description

The Omron G5LA series relay is a general purpose relay with a SPST-NO (1 Form A) contact form.

  • Contact Form: SPST-NO (1 Form A)
  • Coil Voltage: 12VDC
  • Coil Resistance: 400 Ohms
  • Contact Material: Silver tin oxide (AgSnO)
  • Contact Rating: 10A @ 250VAC, 24VDC
  • Operating Temperature: -40°C to 85°C
  • Mounting: Through hole
  • Coil Type: Non-latching
  • Operate Time: 10ms
  • Packaging: Tray
  • Suitable for: Power relays, over 2 amps
  • Series: G5LA
  • Manufacturer: Omron
