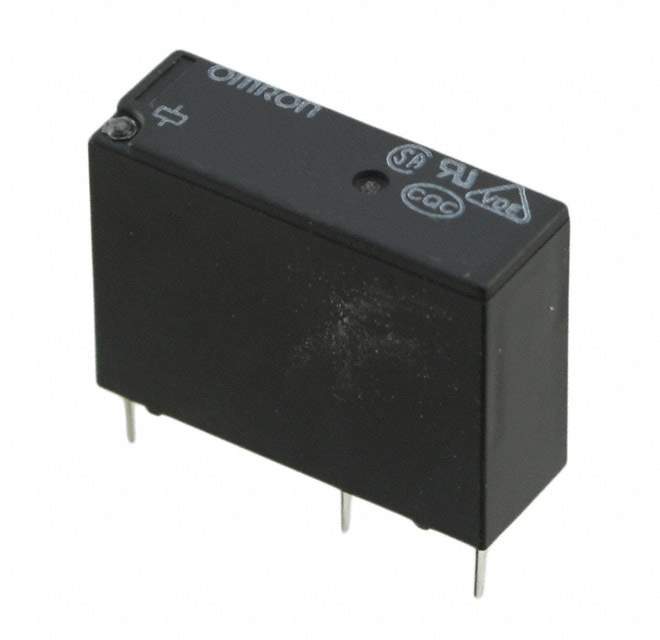

G5NB-1A DC5 Real Image1 G5NB-1A DC5 Real Image2
Same model may have multiple batches, images only for reference.
G5NB-1A DC5 Real Image1 G5NB-1A DC5 Real Image2
G5NB-1A DC5 Real Image1 G5NB-1A DC5 Real Image2
Same model may have multiple batches, images only for reference.

G5NB-1A DC5

Part No G5NB-1A DC5
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE SPST 3A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron
Series G5NB
Package Bulk
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 3 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 40 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation -
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material -
Relay Type General Purpose
Coil Resistance 125 Ohms
Base Product Number G5NB
Moisture Sensitivity Level (MSL) Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Standard Package 500 pcs
Win Source Part Number 1382143-G5NB-1A DC5
Ultra Librarian 3D Model Ultra Librarian G5NB-1A DC5 CAD Model

Description

The 1382143-G5NB-1A DC5 is a power relay from the G5NB series by Omron.

  • Application: High current switching
  • Termination Style: PC pin
  • Package: Bulk
  • Contact Form: SPST-NO (1 Form A)
  • Coil Voltage: 5VDC
  • Coil Resistance: 125 Ohms
  • Coil Current: 40 mA
  • Contact Rating: 3A
  • Switching Voltage: 250VAC and 30VDC maximum
  • Release Time and Operate Time: 10ms
  • Seal: Flux protection
  • Temperature Range: -40°C to 70°C
  • ECCN: EAR99
  • HTSUS Code: 8536.41.0020
