Same model may have multiple batches, images only for reference.

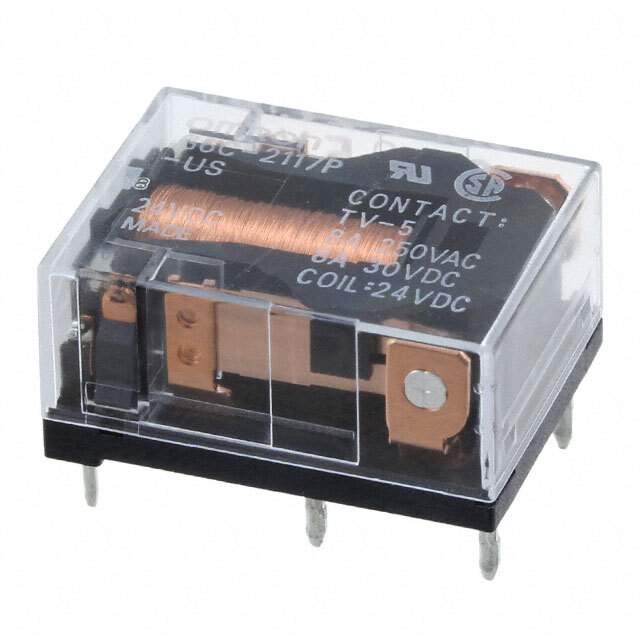

G6C-2117P-US-DC24 Real Image
Same model may have multiple batches, images only for reference.

G6C-2117P-US-DC24

Part No G6C-2117P-US-DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Datasheet
G6C-2117P-US-DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6C
Package Bulk
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current) 8 A
Switching Voltage 380VAC, 125VDC - Max
Coil Current 8.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -25°C ~ 70°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Base Product Number G6C
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1315316-G6C-2117P-US-DC24
Ultra Librarian 3D Model Ultra Librarian G6C-2117P-US-DC24 CAD Model

Description

The Omron Electronics Inc-EMC Div G6C Power Relay is a high-performance relay that is used in various industrial applications.

  • Contact Rating: 8A
  • Voltage: 24VDC
  • Circuit: DPST-NO/NC (1 Form A, 1 Form B)
  • Switching Voltage: 380VAC, 125VDC - Max
  • Temperature Range: -25°C to 70°C
  • Application: Industrial Automation
