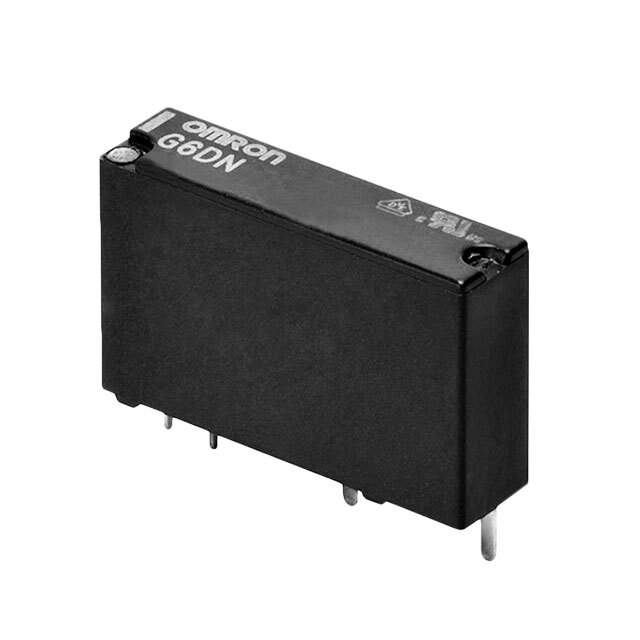

G6DN-1A DC5 Real Image
Same model may have multiple batches, images only for reference.

G6DN-1A DC5

Part No G6DN-1A DC5
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6DN
Package Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 277VAC, 125VDC - Max
Coil Current 22 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class B
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.25 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 90°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 227 Ohms
Base Product Number G6D
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1352340-G6DN-1A DC5
Ultra Librarian 3D Model Ultra Librarian G6DN-1A DC5 CAD Model

Description

The Omron Electronics Inc-EMC Div G6DN-1A DC5 is a general-purpose power relay with a SPST-NO (1 Form A) contact form.

  • Contact Form: SPST-NO (1 Form A)
  • Termination Style: PC Pin
  • Coil Voltage: 5VDC
  • Switching Voltage: 277VAC, 125VDC
  • Contact Rating: 5A (Max)
  • Sealed: Yes
  • Operating Temperature: -40°C ~ 90°C
  • Release Time: 5ms
